Corner Rounding

Cycle: Roughing, turnyuGO, // Roughing, Balanced roughing, Finish, Finishing Ø / Face, Finishing B simultaneous, Balanced Finishing, Form Finishing, Finish Groove

Definition

This parameter enables to generate corners on sharp angles.

If you choose Yes, the programmed toolpath generates arcs (G2 or G3 code) when a radius to be machined is smaller than the tool radius and on sharp outside angles.

The tool then remains in contact with the part. This choice is often used during Right / Left toolpaths calculations.

If you choose No, the programmed toolpath does not generate arcs, it remains parallel to the geometry.

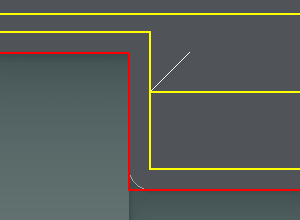

No Corner	Corner rounding programmed; the corner is only done on the outside angle.
