Cycles: Direct Grooving, Z Level, Zig Zag, W type, O Ring type, Finish Groove
Definition
You can program a finishing pass on all the cycles. Consequently, the finishing pass is done with the same tool as the roughing.
2 options are available:
|

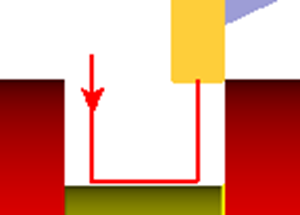

Side/Side: 1 side is done, then retract on the middle, finally other side is done. |

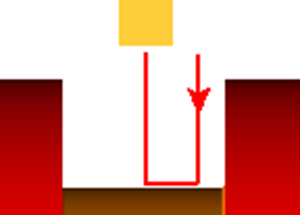

Continuous: only one pass is done |
|
|
|
|
This parameter also takes into consideration the Multiple grooves parameter where applicable. The iterations are as per below:
Multi-Grooves: None Finish: Side/Side |
Multi-Grooves: None Finish: Continuous |
O Ring type Finish: Side/Side |
Multi-Grooves: Yes Finish: Side/Side |
Multi-Grooves: Yes Finish: Continuous |
O Ring type Finish: Continuous |
|
▶️ You can watch a video demonstrating the functioning of this parameter:
|
