Cycle: Z repeat Facing, Facing Pocket, Facing Roughing
Definition
|
This parameter defines how the tool goes out of the material between 2 passes. The facing automatically go over the part with the value of the tool diameter. You can set an overlength to go further in open areas, only in the direction of toolpath. |
|

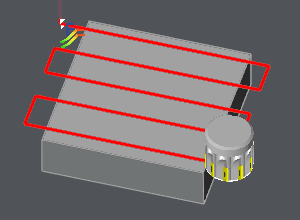

By default, if the overlength value is 0, the tool goes out of the profile from the value of tool radius. |

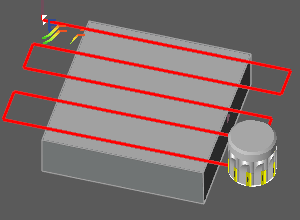

The overlength defined is added to the tool radius value. |
|
|

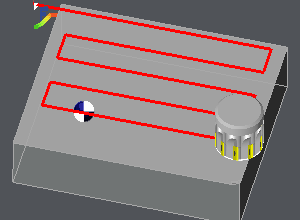

You can also define a negative value, to avoid the tool to go out completely of the material and then shorten the length of toolpath.
|
|
|
