Toolpath Following Slope

Cycle: Chamfering

Definition

Toolpath calculation with a slope following or not.

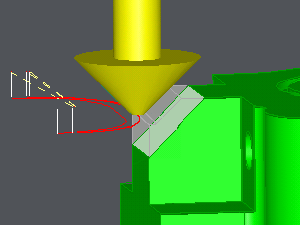

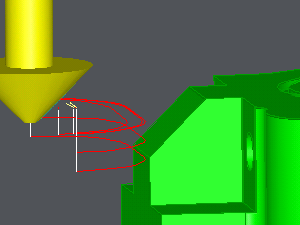

Slope following: No

The tool stops at the same XY increment on each z increment. The more the tool goes down, the more material is machined.

The cutting height of the tool must be greater than the chamfer height.

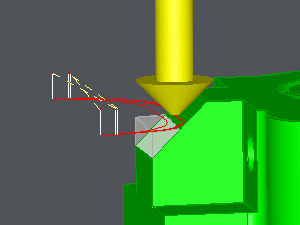

Slope following: Yes

The toolpath takes into account the chamfer slope. All the material is machined at each Z increment.
