Angle - Diameter
Cycle: Finishing Ø / Face
Definition
The aim of this parameter is to define the belonging of an element to the type diameter or face, in order to choose the right optimization. This is especially useful for cones elements.

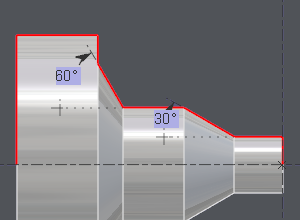

With this part, the purpose is to determine if the cones of 30° and 60° are considered as faces or diameters. |  |
 | 0 is the default value: all chamfers and cones are considered as faces. |
 | Cones under 45° are considered as diameters: cone 30° is a diameter, cone 60° is a face. |
 | Cones under 75° are considered as diameters: cone 30° and 60° are both diameters.. |
