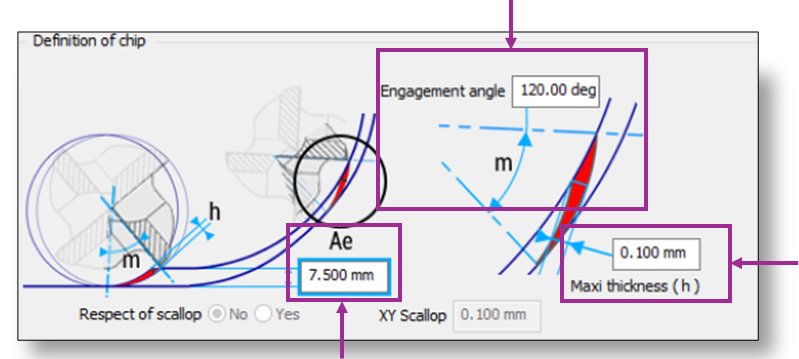

Definition of Chip

Engagement angle(m) ,is the most important value. It is always respected and will stay constant all along the toolpath.

Maxi thickness of chip(h), It is always constant.

Lateral pass width(Ae), the value given in the dialog is the one for straight lines. But it will not be constant, it will vary to respect the engagement angle (m)
