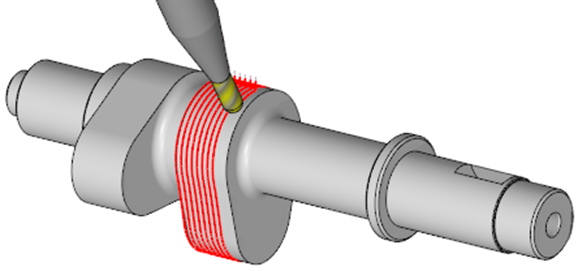

Facing Strategy - Helix Toolpath

One of the main strength of the 4X cycle is the ability to generate a continuous helix toolpath.

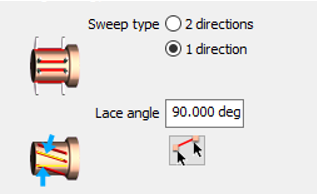

To get the helix toolpath:

• set the Sweep type to One direction

• define a Lace angle = 90° or 270°.
