Distance and Coeff of Feedrate Reduction

Cycle: Zig Zag Groove

Definition

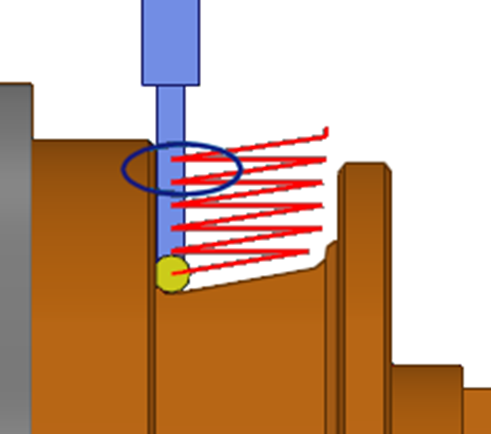

In the zig zag groove, you can program a reduction of feedrate of tool when it comes close to the groove walls. We define the feedrate reduction distance and the reduction coefficient applied to the value in Technology page.

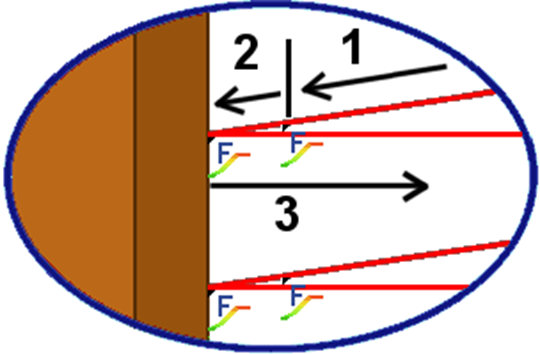

Caption for the image on the right:

Toolpath 1: feedrate value

Toolpath 2: feedrate is reduced

Toolpath 3: back to feedrate value.

 The symbol Feedrate (F) is displayed on the screen to show the location of feedrate reduction.
