Lead In And Lead Out Lengths
Cycles: Parallel Plane, Z Level, Profile, Spiral, Equidistant, Pocket Morphing, Contour Morphing, Auto // Plane, Auto Equidistant, Auto Z Level, Vertical // Plane, Vertical Equidistant, Vertical Z Level, Horizontal // Plane, Horizontal Equidistant, Facing (Shape), Finishing, Finish Reworking (Shape), 3X Isoparametric, 5X Isoparametric, Plunge Contouring
Definition
Tool positioning when leading and retracting.
Lead in and lead out lengths

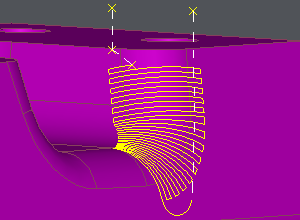

These lengths depend on the selected strategy. If Tangent is chosen, the specified length corresponds to a radius. As shown in the image, the Lead-in is set to Normal with a length of 5 mm, while the Lead-out is set to Tangent with a 2 mm radius. |  |
