Limitate on Z Axis
Cycles: Roughing, Balanced Roughing
Definition
This strategy allows you to limit the toolpath in a facing operation with respect to the rotation axis.
This feature is only available for the Facing Cycles.
No | Yes | |

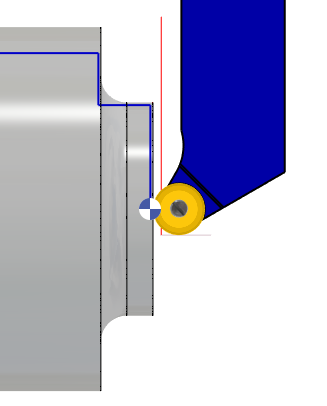

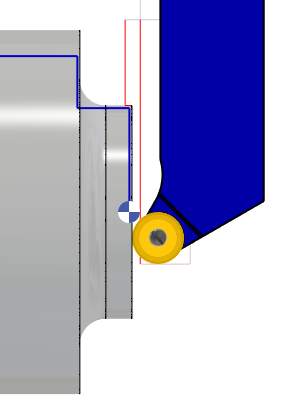

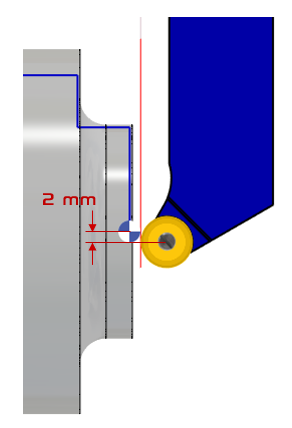

The toolpath goes beyond the Z axis by a distance which equals to the diameter of the tool. | Exceed the axis = 0 mm The tool center is stopped at the Z axis. | Exceed the axis = 2 mm The tool center exceeds the Z axis by 2 mm |
 |  |  |
The maximum “Exceed the axis” value will be limited to the radius of the tool used.

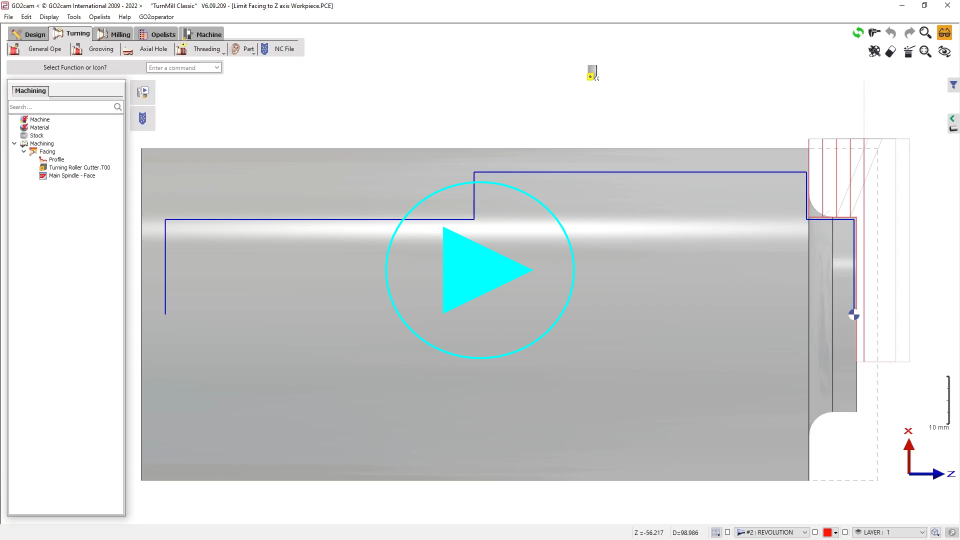

▶️ You can watch a video on limitate on Z axis (No, Yes and Max. value of Exceed the Axis):  |
