Type of Lead in/Lead out in XY
Cycle: Parallel Plane, Z Level, Profile, Spiral, Equidistant, Pocket Morphing, Contour Morphing, Auto // Plane, Auto Equidistant, Auto Z Level, Vertical // Plane, Vertical Equidistant, Vertical Z Level, Horizontal // Plane, Horizontal Equidistant, Facing (Shape), Finishing, Finish Reworking (Shape)
Definition

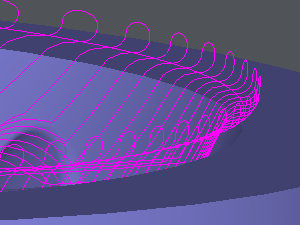

Lead in and lead out definition between the passes. Without lead in and lead out arc radii. |  |

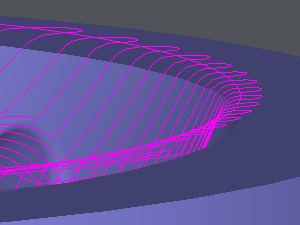

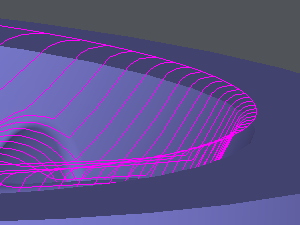

Maxi lead in and lead out arc radii = 2.5 mm | Maxi lead in and lead out arc radii = 2.5 mm |
 |  |
Cycle: Finishing

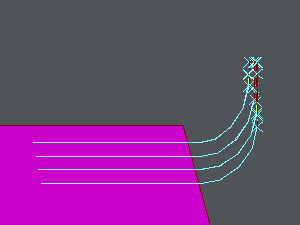

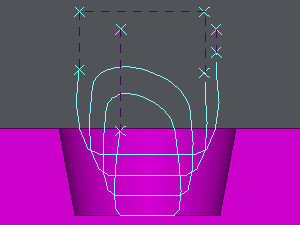

Lead in and lead out arcs defined following the Z axis
 |  |

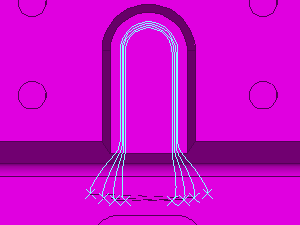

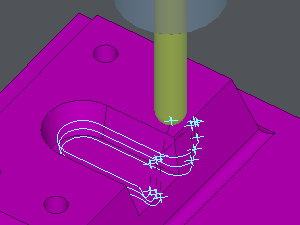

If the rapid motion between two passes is too small relative to the tool diameter, the motion is done with a bend in feedrate.  | A bend is automatically created on XY plane.  |
