Mini and Maxi Orientations

Cycle: Finishing B simultaneous

Definition

In the cycle Finishing B simultaneous, you can define the minimum and maximum angles for the orientation of B axis.

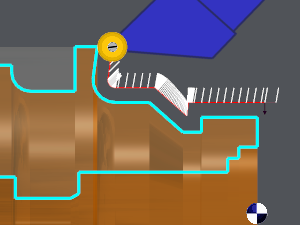

The calculation of B angles of the toolpath is done automatically, according to the gouge checking option and the mini and maxi orientations.

The B angle will be exclusively included in the range of mini and maxi values.

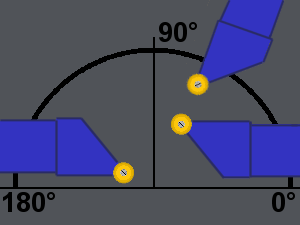

 The value 0 corresponds to the Z axis and the angles are calculated in the counterclockwise direction (CCW).
