Plunge and Retract Angles

Cycle: W type Grooving

Definition

These angles enable a better protection of the tool in the W type Grooving.

 Instead of plunging and retracting vertically, you can define 2 different angles:

• Plunge angle enables to lead in the material with a smooth toolpath

• Retract angle avoids the tool wearing out the flank of the groove when retracting

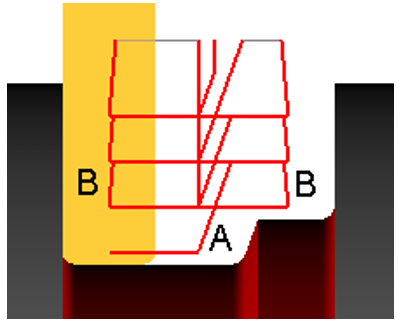

  Plunge angle (A) is 20°, Retract angle (B) is 5°.
