Radii on diameter and face

Cycle: Finishing Ø / Face

Definition

Definition of leadin radius on diameter and face toolpath in the cycle Finishing Ø/ face.

Enter the value needed, and then define the aperture angle of the radius by inserting a value in the “Angle of the radius on face” dialog.

By default, aperture angle value is 0, it corresponds to a 90° arc. This radius can be defined in the range 0° - 90°.

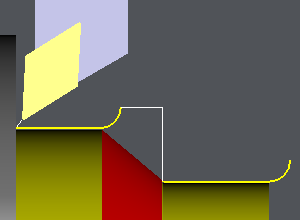

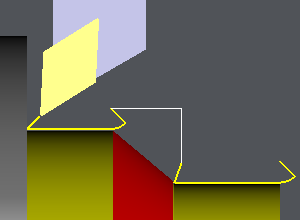

The leadin radius is 5 mm, with 90° of aperture.	These options can be combined with approach and retract distances. Here, we combine a partial radius of 45° with an approach distance of 5 mm. Retract is also 5 mm long.
