Cycle: millyuGO Pocket, Pocket, Facing Pocket, Pocket Rework, Finish Contour, Plunge Pocketing
|
This option enables the customization of overcutting amount applied to open regions by entering any desired value. |
Open areas
|
|

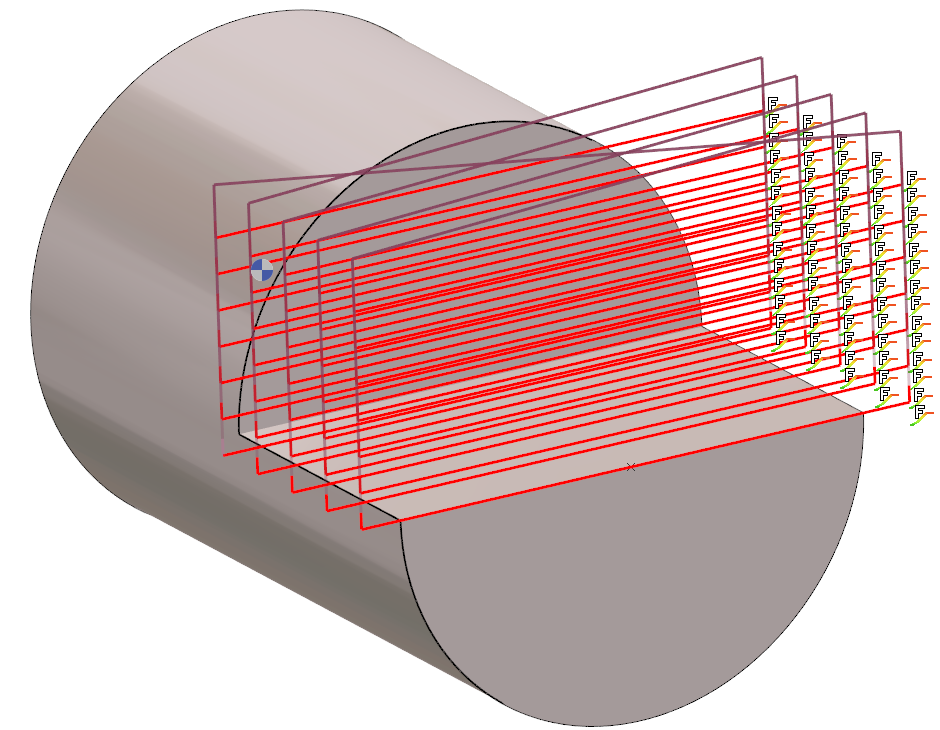

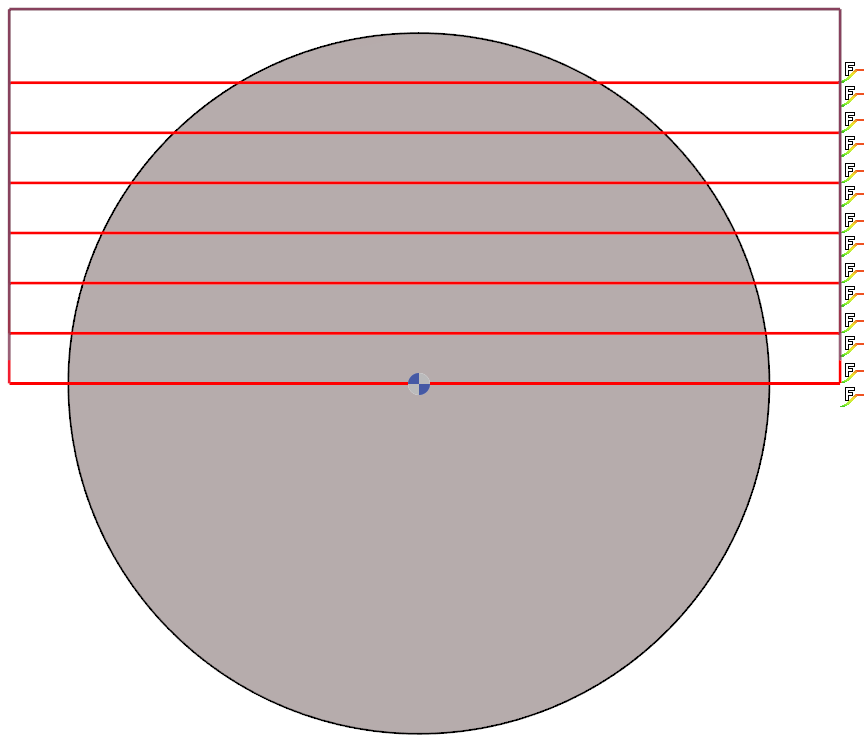

On profile |
The tool will machine beyond the selected profile by a small amount determined by the "overcutting length" setting. |
|
|
|
|

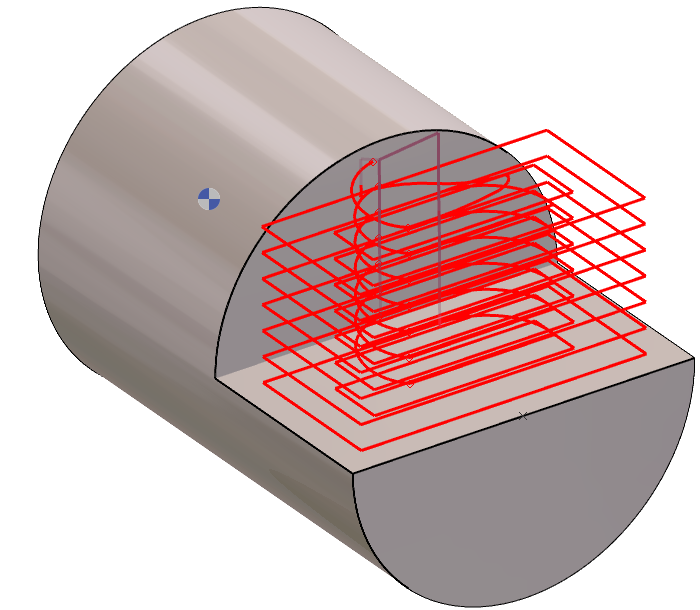

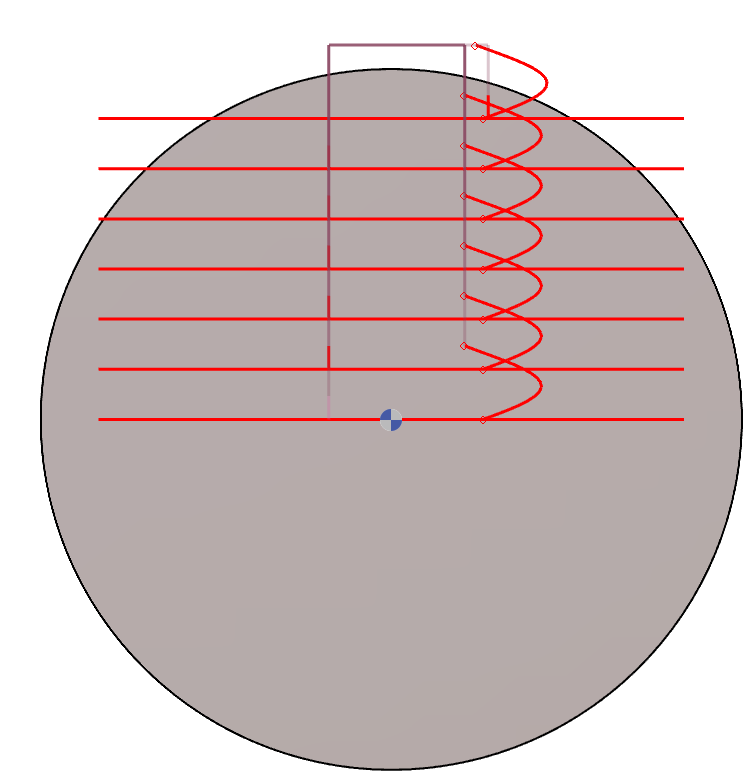

With no overcut |
The tool will machine exactly within the selected profile. |
|
|
|
|

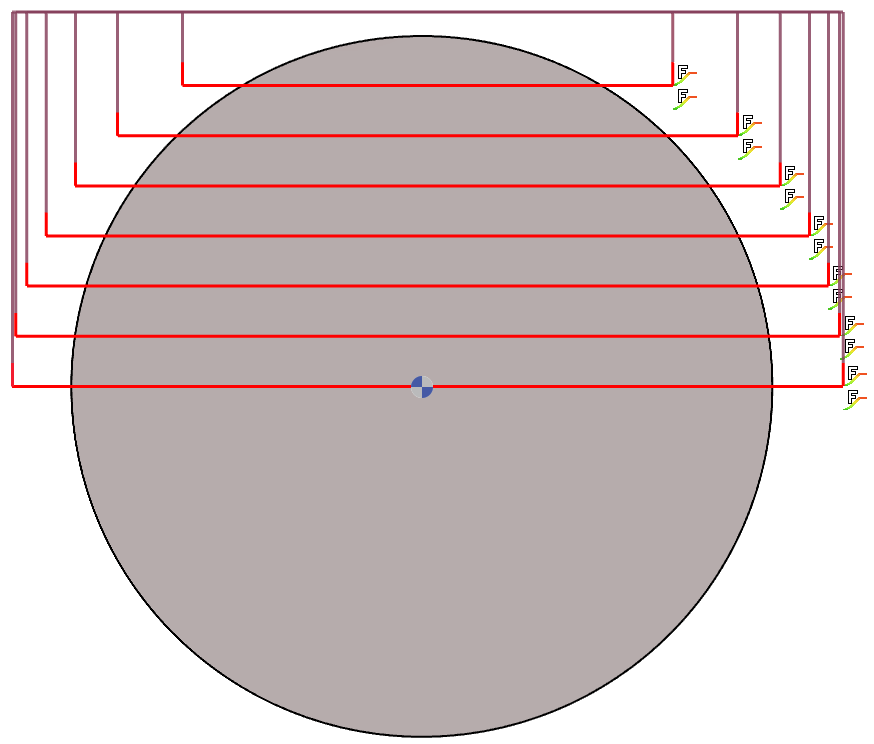

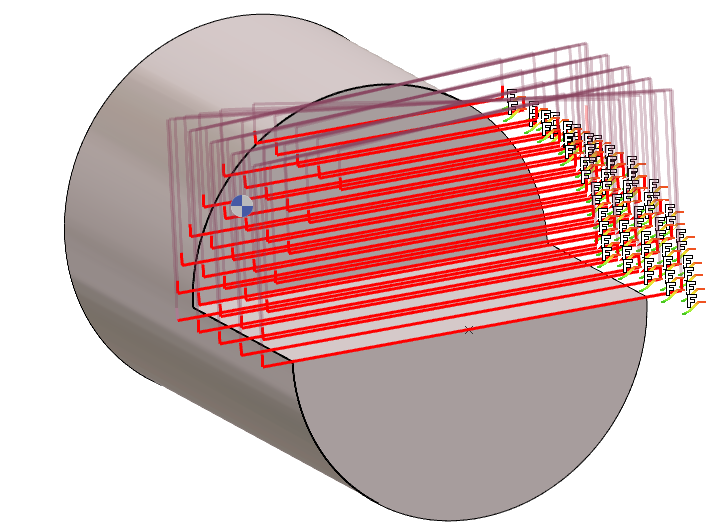

On 3D stock |
The tool will follow the contours of the 3D stock, limiting machining in areas where there's no material. |
|
|
|
Watch a video demonstrating the management of 3D stock in reducing air machining.
|
|
|||
