Plunge Type

Cycle: Zig Zag Grooving

Definition

This command allows you to choose between three types of plunge.

The pull down menu offers:

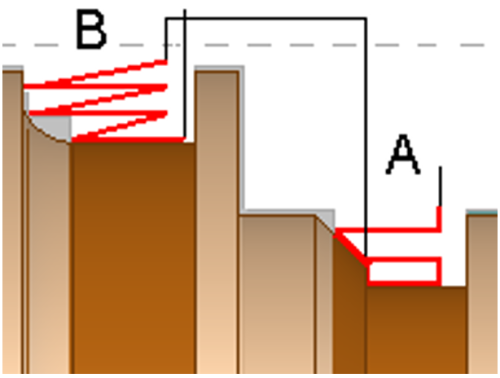

  1. S type (A): the passes are // to the Z and X axis.
Plunge Type.png

  1. Z type (B): the passes have composed movements in Z and X axis.

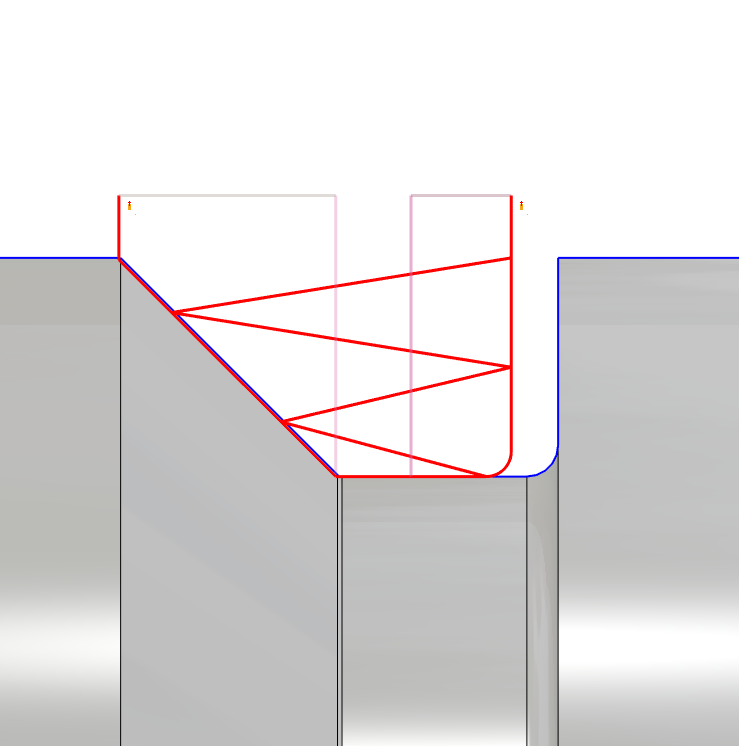

  1. ZigZag: This option enables the toolpath to simultaneously move into both axes at each step of the toolpath.
Zigzag toolpath-20240219-115455.PNG


▶️ Watch a video on ZigZag Groove operation.

Plunge type - Zigzag groove operation.png
