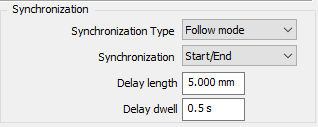

Synchronization

These set of parameters define the synchronized motion of the second tool with that of the first tool in a balanced cycle.

Proper visualization of the generated toolpaths is better viewed in MTE.

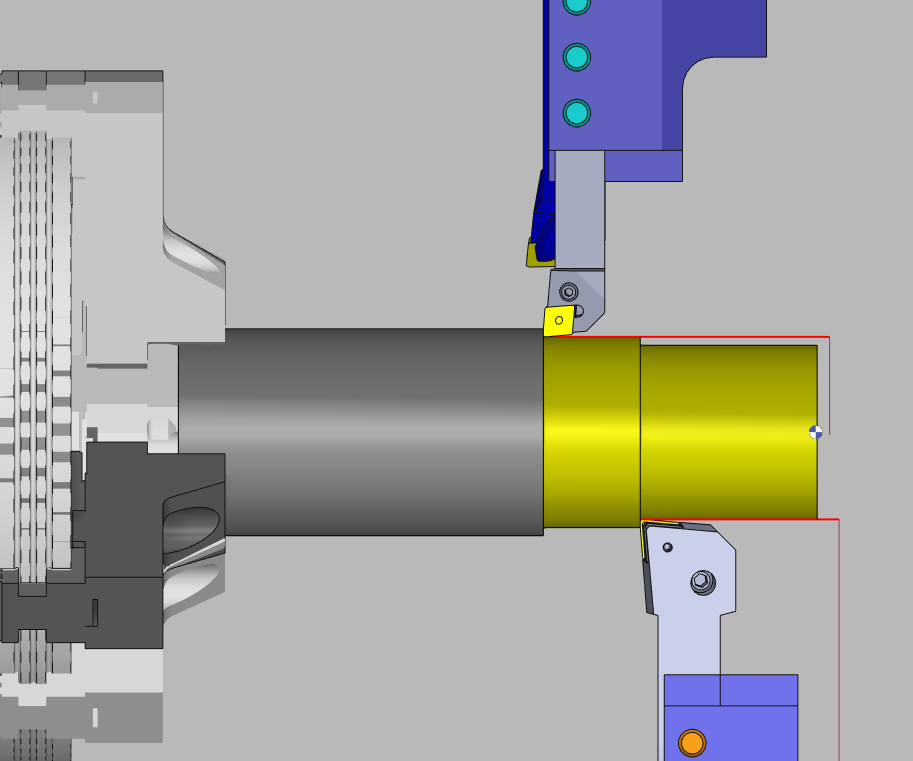

Follow Mode

This mode allows the 2nd tool to follow with its operation right after the operation start of the 1st tool. A delay length and dwell can be defined specifically for this mode to have the tool follow slightly behind the 1st one to avoid any clashes or collisions. The delay is calculated at the starting point of the toolpath.

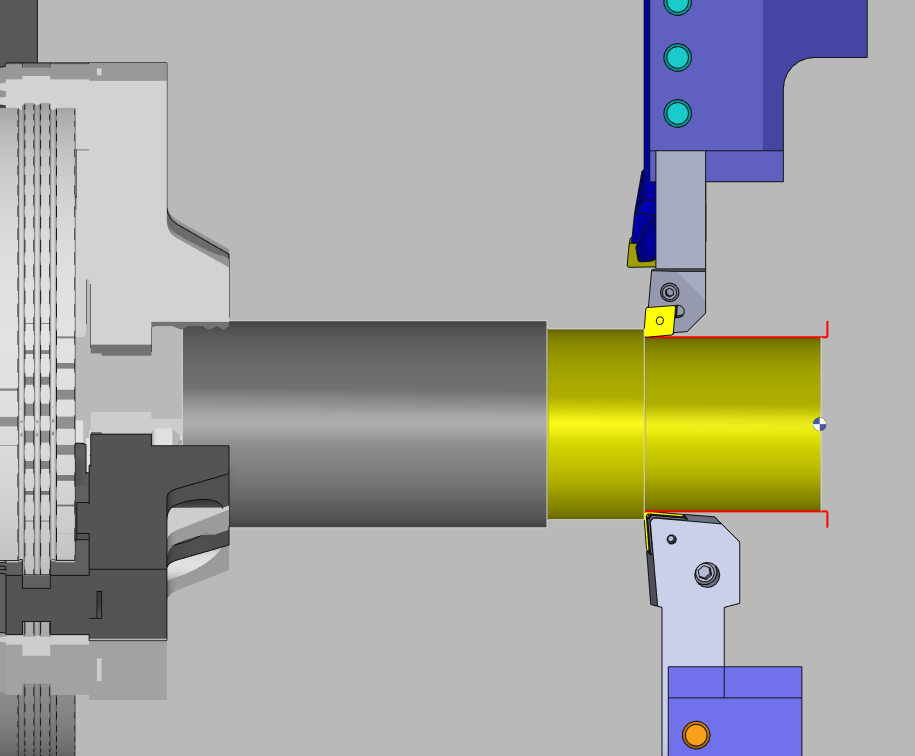

Pinch Mode

In this mode, both tools start their operation at the same time. As such a half revolution of the spindle and the simultaneous cutting operation of both tools allows a full 360 degree coverage.

No delay parameter can be defined for this mode.

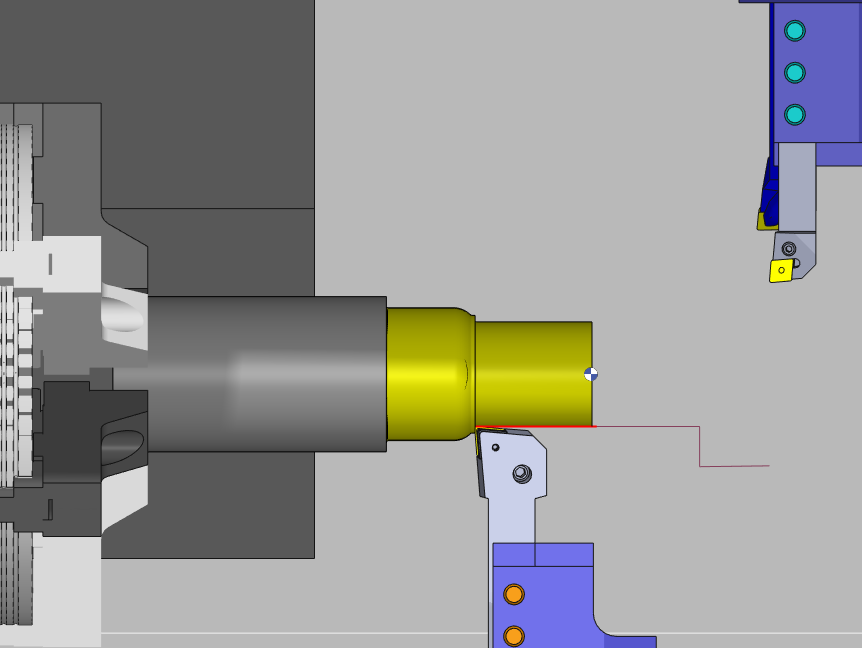

Alternate (Approach pt)

For this mode, an approach point has to be mandatorily defined in the geometry selection step. Also the machining is carried out alternatingly between the 2 tools.

No delay parameter can be defined for this mode. Also Start/End synchronization is not applicable.

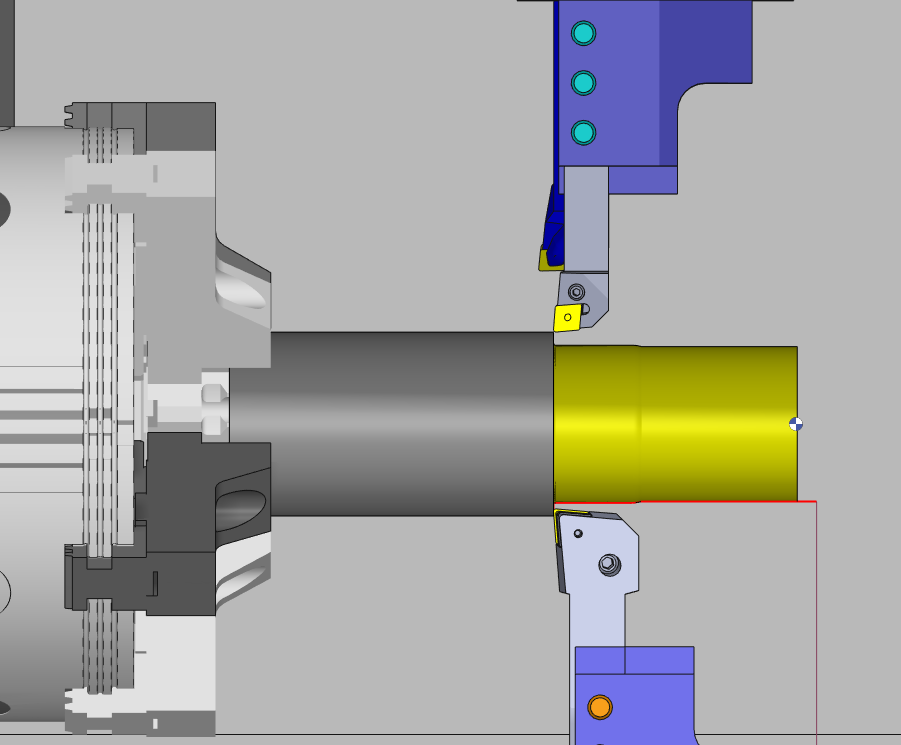

Start/End

Synchronization is considered at the approach and return point.

Any delay defined is considered at the approach point.

For this setting, retraction from the return point is carried out simultaneously. As such, if the first tool reaches the end point first, it idles at that position till the 2nd tool reaches that point.

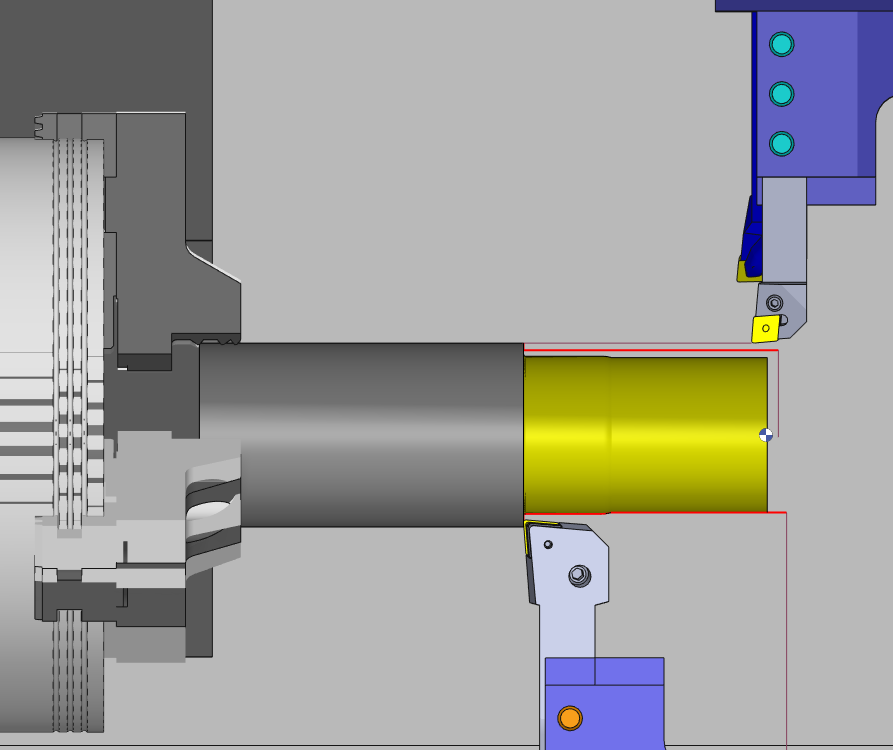

Start

Synchronization is considered at the approach and return point.

Any delay defined is considered at the approach point.

For this setting, retraction from the return point is carried out individually. As such, if the first tool reaches the end point first, it does not idle and continues its retraction.
