Z Step Ap for Interpolation

Cycles: Interpolation

Z Step (Ap)

This is the Z increment between 2 passes. It corresponds to the cutting of the total depth. If the incremental depth is greater than the maximum depth of pass of the tool, there is a warning message.

If the value is set to 0, the toolpath has only one pass, which is done at the bottom of the shape (at the bottom altitude).

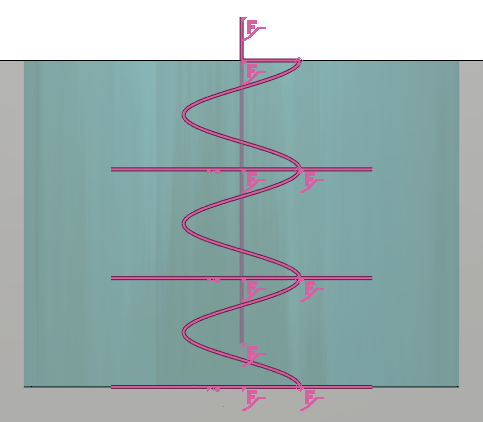

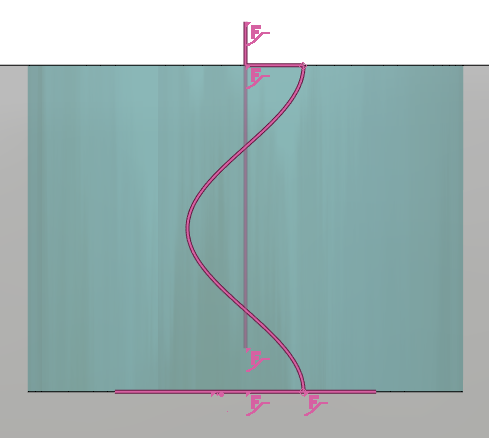

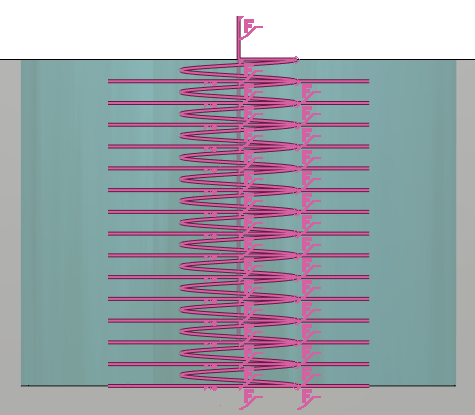

Z Step (Ap) = 0 mm	Z Step (Ap) = 1 mm	Z Step (Ap) = 5 mm
