2 Ways Path
Cycle: Contouring
▶️ You can watch a video at the bottom of page: Click here |
Definition

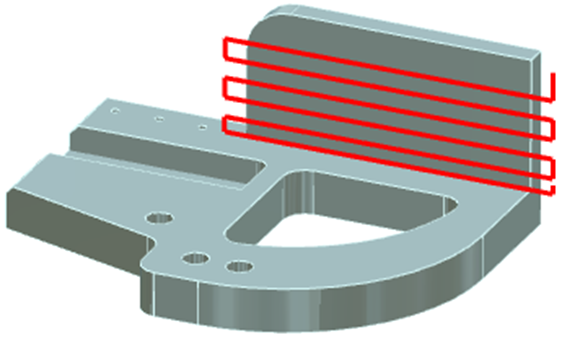

Definition of a zigzag toolpath.
It is the inversion of the passes direction in XY or Z to make 2-ways path.
You can define a toolpath with a change of compensation, alternatively G41 and G42.
 | No |
 | Yes |
Z Step (Ap) should be greater than zero, else this option is not available.
The main advantage is to avoid many rapid motions.

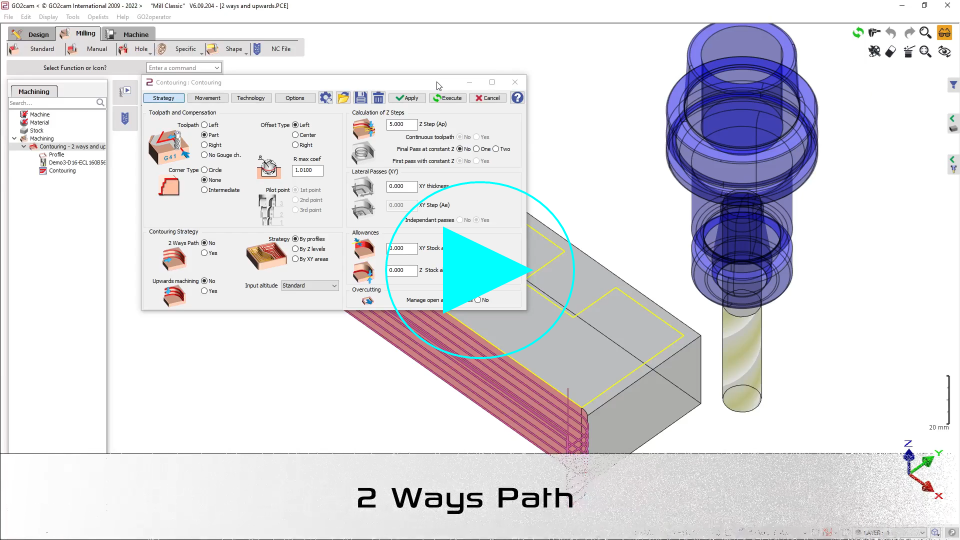

▶️ The video below is based on parameters 2 Ways Path and Upwards Machining.  |
