Safety Approach and Return in Z
Cycles: All Standard Cycles, All Manual Cycles, All Manual Holes Cycle, Profile Cutting, millyuGO, PAM, Roughing/Reworking, Facing Roughing, Pocket (Shape), Finish Contour (Shape), Finish Reworking (Shape), 3X Deburring, 3X Isoparametric, 5X Isoparametric, Plunge Contouring, Plunge Pocketting
Definition
Management of the approach and return movements of the tool following Z axis.

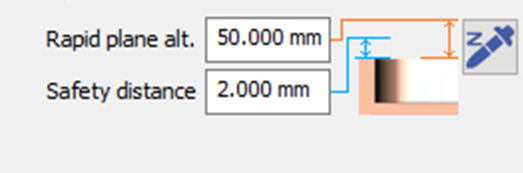

Rapid plane altitude
This altitude is taken into account depending on the option used for approach and retract altitudes. The rapid plane altitude is linked in absolute to the Z reference (Z0). It can be positive or negative.
You can define the rapid plane altitude by recovering a value on the geometry. For this, click the icon
and then click on the geometry to select an altitude.
Safety distance
This distance corresponds to the safety margin for rapid movements. The security distance is linked to the altitude of the material and it is always positive.
You can define the approach and return movements among several possibilities:
