Control Report

While using ‘Control of part’ probing cycles, all milling post-processors can generate a control report in XML format file with the ISO name and the extension *.MEAS.

The file is automatically created in the same directory as NC files.

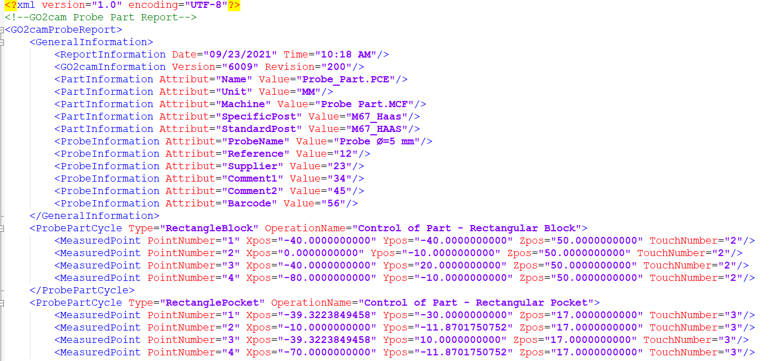

An example of a control report is shown below:
