Limitation of Machining
Cycles: 4X Facing, 4X Spiral
▶️ You can watch two videos at the bottom of page: Click here |
Definition
You can define the toolpath with a shift on the profile of limitation.
If you defined a geometric limitation, set the option to 'Island only' or 'All'. The shift is done on the limitation profile. |  Island Only |
 All | |
If you defined an axial limitation, set the option to 'Line' and define starting and ending distances. The shift is done at each extremity of axial limitation. |  Line |

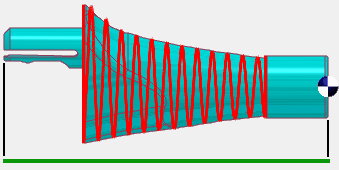

In the following part, the starting distance is -11 mm and the ending distance is -14 mm.  | |
You can watch a video on Facing Shift:  | You can watch a video on Spiral Limitation Shift:  |
