Machining Tree - Machining

Presentation

You can accede to many complementary functions useful for machining.

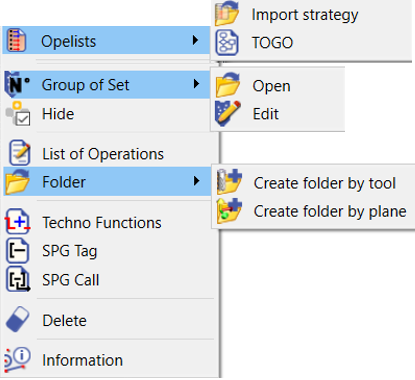

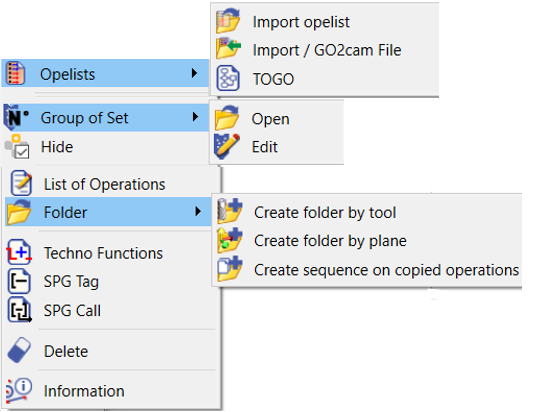

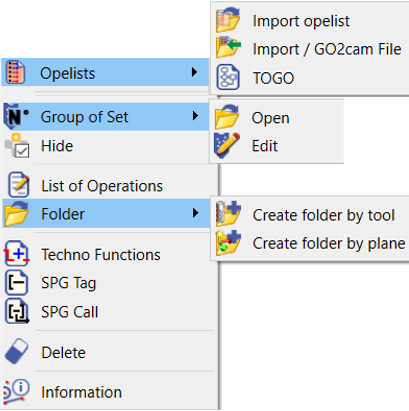

To access these functions, right-click on the Machining line of the Machining Tree :

Milling Dialog

Turning Dialog

EDM Dialog

Options

Common Options

Opelist Import (Import Strategy)

Loading an operation list... please read the corresponding chapter

Hide

You can hide all the machining cycles at once. For the same action, you can also press the third button of the mouse (wheel).

List of operations

You can access several lists of operation and their specific functions : Simple, Techno, Tool, Time, Synchro (Turning only).

New in v6: you can edit these list of operations under several formats. Click the button Export, and choose the type of format: *.csv, *.txt or *.pdf.

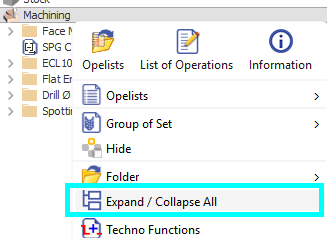

Folder

This function allows for grouping of machining cycles within the machining tree either by tool, by plane or arbitrarily as per your requirement.

Note that the folder automatically takes the name of the tools or the planes and it can be renamed if necessary.

MT folder creation help.png

Techno Functions

These functions are considered as operations in the tree ; you can add stop, coolant and specific operations etc.

SPG Tag and SPG Call

Creation of sub-programs treated by the post-processor

Delete

Deletion of all the operations defined

Information

Machining time of the whole part calculated regarding the cutting conditions

▶️ You can watch a video on how to search in the list of operations:

How to search in an operation list.png
