Safety Approach and Return in Z
Cycle: All Standard Cycles, All Manual Cycles, All Manual Holes Cycle, millyuGO, PAM, Roughing/Reworking, Facing Roughing, Pocket - Shape, Finish Contour - Shape, Finish Reworking - Shape, 3X Deburring, 3X Isoparametric, 5X Isoparametric, Profile Cutting, Plunge Contouring, Plunge Pocketing
Definition

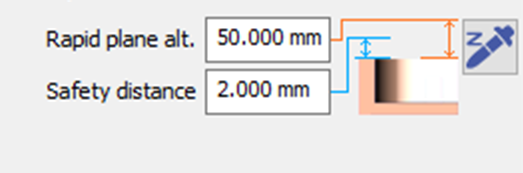

Management of the approach and return movements of the tool following Z axis. | ![]() |
Rapid plane altitude
This altitude is taken into account depending on the option used for approach and retract altitudes. The rapid plane altitude is linked in absolute to the Z reference (Z0). It can be positive or negative.
![]() | The rapid plane altitude can be defined by recovering a value on the geometry. For this, click this icon and then click on the geometry to select an altitude. |
Safety distance
This distance corresponds to the safety margin for rapid movements. The security distance is linked to the altitude of the material and it is always positive.
The approach and return movements can be defined among several possibilities:
