Machining of the defined area and Width Machined

Cycle: Profile (finishing), Equidistant, Pocket Morphing, 5X Equidistant, 5X Pocket Morphing

Definition

The equidistant cycle allows you either to machine the complete shape or to machine the reference curve on a defined width.

	Partial: the toolpath is constrained to a specified width (in millimeters), parallel to the selected profile.
	Total: the complete shape is machined.

Only available if complete machining is set to Partial.

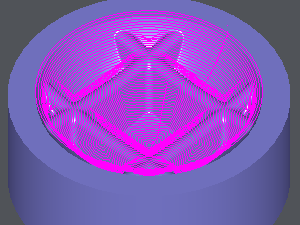

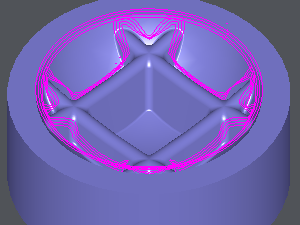

Machining of the defined area set to Partial with 5 mm width	Machining of the defined area set to Total machining
