Roughing of a screw

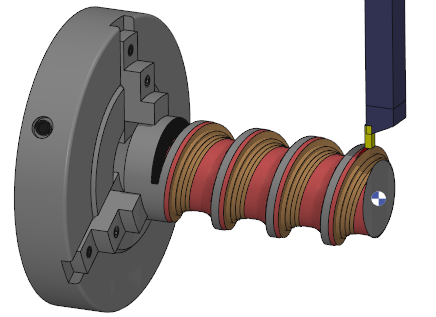

Roughing of an endless screw on a lathe with the management of stock.

Key Points

This cycle works as the grooving cycles, with stock management.

The pitch of the screw is constant.

Settings: only one section of the groove has to be drawn and the cycle will duplicate it along the profile according to the pitch defined and the ending Z of the screw.

Those parameters are defined in the strategy page.

▶️ You can watch a video to set up and define the machining of the screw:

Strategy Parameters

Dialog Area	Parameters
Toolpath	Toolpath	Back turning
Pitch and Threads	Pitch	Nb of threads
Machining Strategy	Lead in distance	Machining Depth
	End chamfering distance	Z step
	Value of ending Z	XY Stock allowance
		Z Stock allowance

Movement Parameters

Dialog Area	Parameters
Approach and Return Characteristics	Safety distance in Z	Safety distance in X

Technology Parameters

Dialog Area	Parameters
Cutting Conditions	Quality	Spindle speed
	Cutting speed	Feedrate in Z
	Speed range	Feedrate in X
	Feedrate	Spindle direction
	Coolant number	Maxi spindle speed
	Specific coolant
Tool Numbering	Tool number	Specific Number
Tool Numbering	Length compens. nb	Radius compensation number
User information	Comment	Control Device
User information	Machining Set

Options Parameters

Dialog Area	Parameters
Management of collisions	Gouge check on stock	Offset XY
	Safety Area	Offset Z
	Safety distance in Z for rapids	Safety distance in X for rapids
Curves Computing	Curve tolerance	Curve explode into
Options	Back angle clearance
