Cycle: Roughing, TurnyuGO, //Roughing, Balanced Roughing, All Grooving cycles, Threading, Profile thread., Roughing of a screw, Finishing of a screw, Pecking, Toolpath
Definition

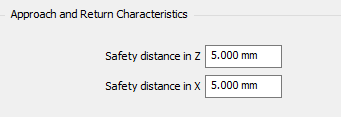

This option allows you to define safety distance in Z and X in the Approach or Return phases.
Safety Distance in Z
|

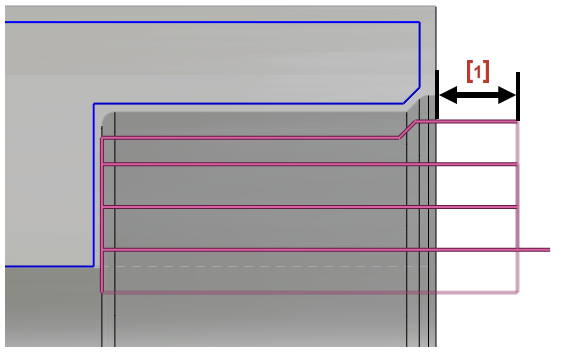

The Safety Distance [1] is calculated according to the stock. As shown in the image on the right, a distance of 5 mm is kept from the stock. |
|
|
Warning for multiple sub-pockets: Safety Distance in Z is normally applied only to the first sub-pocket. For the others, the tool may start directly in remaining material, increasing engagement and reducing tool life. To keep a safe approach for each sub-pocket, set Z safety distance for sub-pockets (for example, 10 mm). This parameter is available only for Roughing and Balanced Roughing cycles. |
|
Safety Distance in X
|

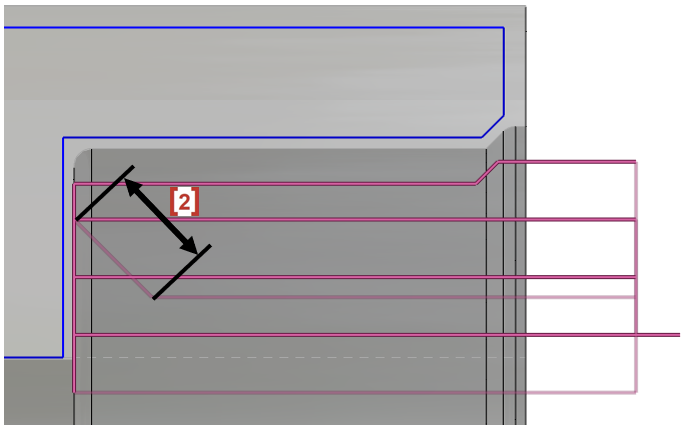

The Safety Distance [2] is calculated according to the stock. As shown in the image on the right, a distance of 5 mm is kept from the stock on the last toolpath. |
|
|

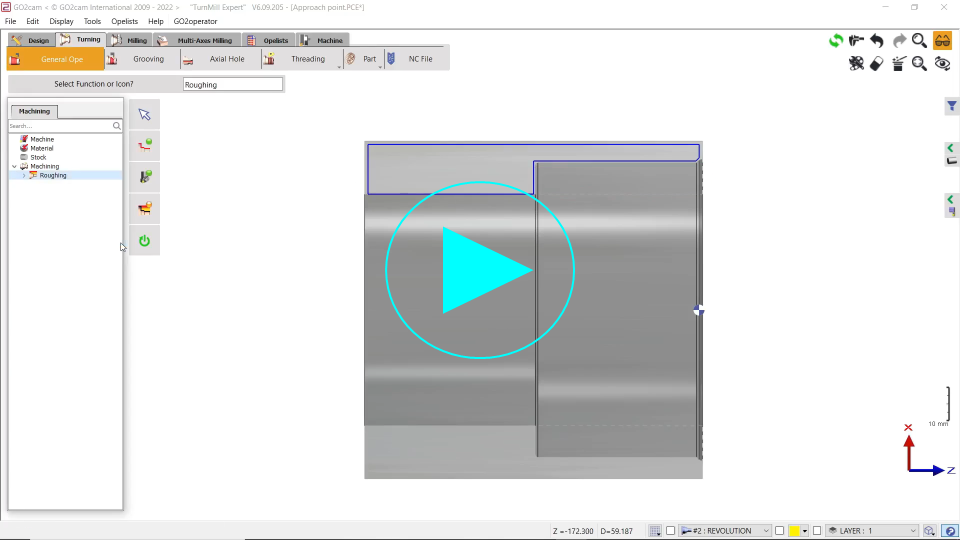

▶️ You can watch a video on defining Safety Distances in Z and X axes in movement tab:
|
