Wtype

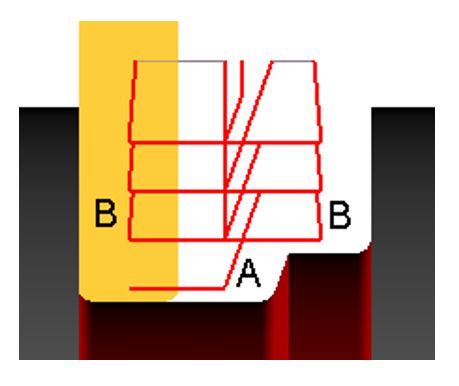

Toolpath with X steps and plunges in the middle of the groove.

• The tool machine the groove as follows:

  • starts from center to a side

  • goes in rapid to the center of the groove.

  • then starts from center to the opposite side of the groove.

The plunge and retract angles ensure the protection of the tool. Instead of plunging and retracting vertically, you can define 2 angles.

• the Plunge angle enables to lead in the material with a smooth toolpath,

• the Retract angle avoids the tool wearing out the flank of the groove when retracting.

Dialog Area

Parameters

Toolpath

Toolpath

Multiple grooves

Piloted points

Finish

Wtype Grooving

2 sides machining

Profile machining

Plunge Angle

Retract Angle

Retract distance

Machining Strategy

Local stock allowance

Pecking distance

XY Stock allowance

Machining Depth

Z Stock allowance

Dwell unit

Final dwell

Dialog Area

Parameters

Approach and Return Characteristics

Safety distance in Z

Safety distance in X

Lead in linear overlength

Lead out linear overlength

Finish overlength

Dialog Area

Parameters

Cutting Conditions

Quality

Cutting Speed

Spindle speed

Speed range

Feedrate in Z

Feedrate

Feedrate in X

Spindle direction

Maxi spindle speed

Coolant number

Specific coolant

Tool Numbering

Tool number

Specific Number

Radius compensation number

Length compens. nb 1

Length compens. nb 2

Users Fields

Comment

Control Device

Machining Set

Dialog Area

Parameters

Management of collisions

Gouge check on stock

Offset XY

Safety Area

Offset Z

Safety distance in Z for rapids

Safety distance in X for rapids

Curves Computing

Curve Tolerance

Curve explode into

Stock to keep

Options

Back angle clearance
