Cycle: Direct Grooving, Z Level, Wtype
This parameter generates extra toolpath after each vertical plunge. It enables to break remaining crests by following the profile from the pass to the previous pass. It is not applied on flat bottom area.
It is different and compatible with the Finishing passes that can be added in those cycles.
|

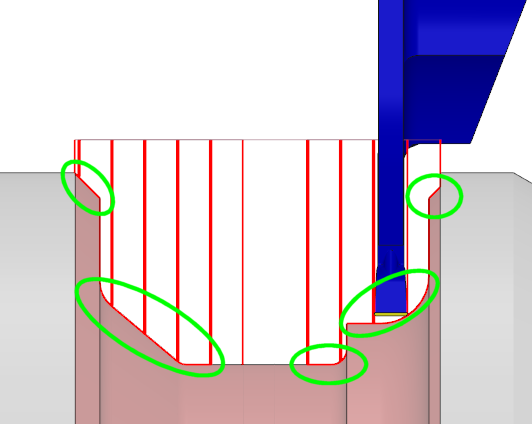

Groove with Profile Machining set to Yes. |
Same Groove with Profile Machining set to No. |
|
|
