Centering

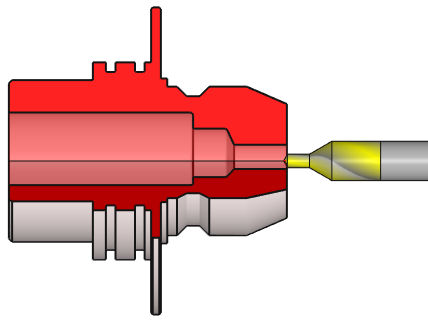

Centering operation done with a spotting, a centering or a standard drill.

Key Points

2 ways are given to define the centering operation:

you can give the centering diameter,
or the depth of centering if the tool has been selected beforehand.

Strategy Parameters

Dialog Area	Parameters
Machining Strategy	Centering depth	Centering diameter
Machining Strategy	Final dwell	Dwell unit

Movement Parameters

Dialog Area	Parameters
Approach and Return Characteristics	Safety distance

Technology Parameters

Dialog Area	Parameters
Cutting Conditions	Quality	Level
	Cutting speed	Spindle speed
	Speed range	Feedrate per tooth
	Feedrate	Feedrate in Z
	Spindle direction	Rotation Speed of Tool
	Coolant number	Specific coolant
Tool Numbering	Tool number	Specific Number
Tool Numbering	Length compens. nb
User information	Comment	Control Device
User information	Machining Set

Options Parameters

Dialog Area	Parameters
Management of collisions	Gouge check on stock	Offset XY
Management of collisions	Safety Area	Offset Z
