Profile threading

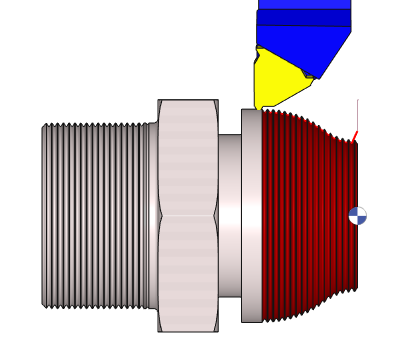

This cycle generates toolpath on a non-straight element or succession of elements. It can be any shape while the threading operation generates a cylindrical or conical threading.

Key Points

Several types of infeed are given: flank, incremental, radial, opposite flank.
The machining depth and number of passes is calculated automatically by respect of ISO standard according to the pitch and number of threads.

Strategy Parameters

Dialog Area	Parameters
Toolpath	Infeed type	Back turning
Pitch and Passes	One page gives the explanation for those parameters: click here Calculate pass, Machining Height, Pitch 1st pass depth, Nb of threads, Last pass depth Stop before extra passes, Nb of passes, Nb extra passes
Machining Strategy	Lead in distance	XY Stock allowance
Machining Strategy	Lead out distance

Movement Parameters

Dialog Area	Parameters
Approach and Return Characteristics	Safety distance in Z	Safety distance in X

Technology Parameters

Dialog Area	Parameters
Cutting Conditions	Quality	Spindle speed
	Cutting speed	Feedrate in Z
	Speed range	Spindle direction
	Feedrate	Maxi spindle speed
	Coolant number	Specific coolant
Tool Numbering	Tool number	Specific Number
Tool Numbering	Length compens. nb	Radius compensation number
User information	Comment	Control Device
User information	Machining Set

Options Parameters

Dialog Area	Parameters
Management of collisions	Gouge check on stock	Offset XY
	Safety Area	Offset Z
	Safety distance in Z for rapids	Safety distance in X for rapids
Curves Computing	Curve tolerance
