Infeed Type

Cycle: Threading, Profile Threading

Definition

Choice of the penetration mode for each pass.

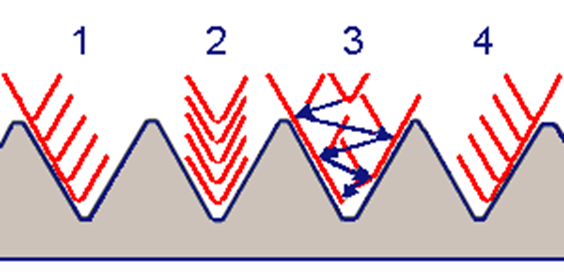

Flank (1): penetration against the side found in the cycle direction.

Radial (2): penetration at the middle of the thread.

Incremental (3): penetration by alternate changing side.

Opposite flank (4): opposite penetration.
