Finish Groove

This finish cycle is supposed to be used after other grooving cycles. But it has also specific use:

machining in a case of manual stock.
making a finish pass on a particular profile.

Key Points

The toolpath does not manage remaining material: it means that it will be calculated even if there is no more material to be removed.
Ability to program G02-G03 on sharp angles (with corner rounding option)
This operation offers several optimized overlap strategies.

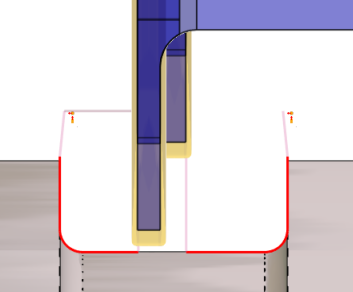

finish groove-small.png

Strategy Parameters

Dialog Area	Parameters
Toolpath	Toolpath	Multiple grooves
	Offset type	Finish
	Piloted points	Corner rounding
Machining Strategy	Local stock allowance	Overlap Method
	XY Stock allowance	Stepover
	Z Stock allowance	Bottom radius

Movement Parameters

Dialog Area	Parameters
Approach and Return Characteristics	Safety distance in Z	Safety distance in X
	Calcuation with tool radius	Leadin/Leadout
	Leadin Overlength/Vector	Leadout Overlength/Vector
	Lead in arc radius	Lead out arc radius
	Lead in linear overlength	Lead out linear overlength

Technology Parameters

Dialog Area	Parameters
Cutting Conditions	Quality	Cutting Speed
	Spindle speed	Speed range
	Feedrate in Z	Feedrate
	Feedrate in X	Spindle direction
	Maxi spindle speed	Coolant number
	Specific coolant
Tool Numbering	Tool number	Specific Number
	Radius compensation number	Length compens. nb 1
	Length compens. nb 2
Users Fields	Comment	Control Device
Users Fields	Machining Set

Options Parameters

Dialog Area	Parameters
Management of collisions	Gouge check on stock	Offset XY
	Safety Area	Offset Z
	Safety distance in Z for rapids	Safety distance in X for rapids
Curves Computing	Curve Tolerance	Curve explode into
Curves Computing	Stock to keep
Options	Back angle clearance	Smoothing Height
