Parting

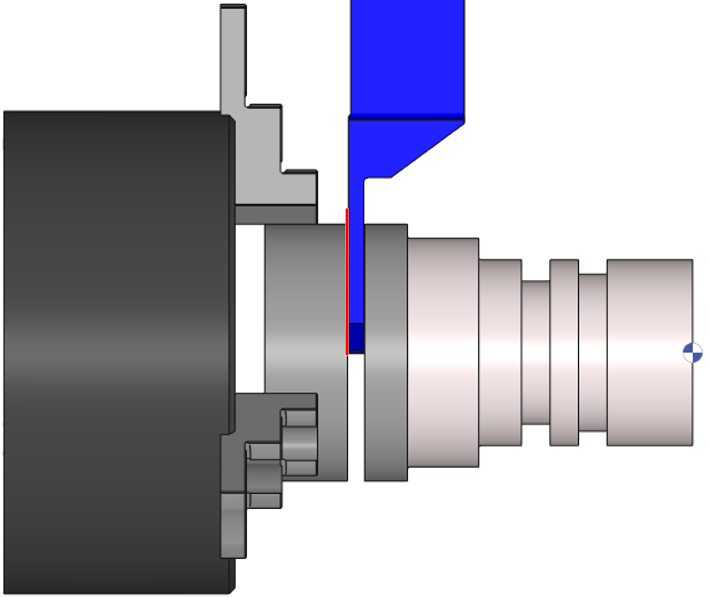

Operation to separate the part from the stock before a transfer in the subspindle for reworking.

Definition

GO2cam offers several types of parting toolpath:

Simple: the parting is done in one pass.
Deburring: several pass part off cycle with tool retraction between each pass up to the security distance.
Chip breaking: parting with several passes with tool delay at the end of the cycle and a retraction distance between each pass.
Deburring + chip breaking

Strategy Parameters

Dialog Area	Parameters
Toolpath	Parting	Pilot choice
	Deburring depth	Tool position/profile
	Chip breaking depth	Pecking
	Chip breaking retract	Dwell
Parting	Collector	Stock to keep
Parting	Bar puller	Length
Machining Strategy	Axis of toolpath	Diam 1st feedrate
	Dwell unit	Depth
	Final dwell	Z Stock allowance

Movement Parameters

Dialog Area	Parameters
Approach and Return Characteristics	Safety distance

Technology Parameters

Dialog Area	Parameters
Cutting Conditions	Quality	Cutting Speed
	Spindle speed	Speed range
	Feedrate in Z	Feedrate
	1st feedrate in X	Spindle direction
	2nd feedrate in X	Maxi spindle speed
	Coolant number	Specific coolant
Tool Numbering	Tool number	Specific Number
Tool Numbering	Radius compensation number	Length compens. nb
User information	Comment	Control Device
User information	Machining Set

Options Parameters

Dialog Area	Parameters
Management of collisions	Gouge check on stock	Offset XY
	Safety Area	Offset Z
	Safety distance in Z for rapids	Safety distance in X for rapids
Curves Computing	Curve Tolerance
