Machine Tool Environment - MTE

The Machine Tool Environment (MTE), an optional module within GO2cam, acts as a virtual machining environment to simulate and optimize processes before physical machining begins.

Key Functionalities

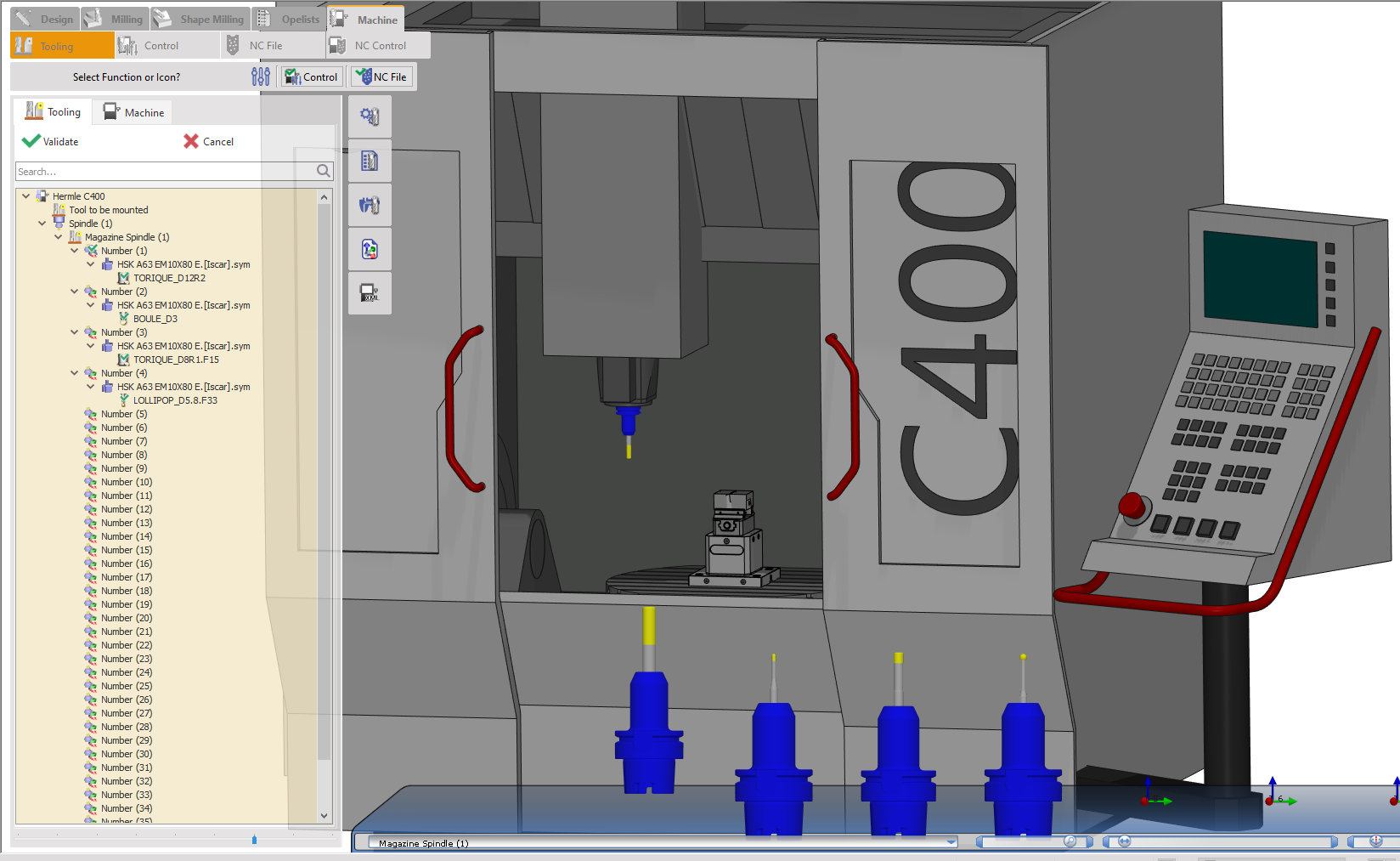

Realistic Toolpath Simulation: MTE distinguishes itself by simulating not only the programmed toolpaths but also the inter-cycle movements, tool changes, and machine actions (axis movements, table rotations) pre-calculated by the machine-specific post-processor. This holistic approach provides a highly realistic representation of the entire machining process.	Example of MTE in Milling
Simplified Tool Definition and Management: MTE streamlines the process of defining and assigning numbers to the tools used in a machining project. This user-friendly interface ensures efficient tool organization and reduces the risk of errors.

Principles

Post-Processor Dependence: Unlike conventional CAM simulations, MTE relies on a machine file with a loaded post-processor. This post-processor data provides crucial information about the inter-cycle movements and machine actions, enabling MTE to generate a highly accurate simulation.
Machine Kinematics Definition: MTE requires a pre-defined 3D CAD model of the specific machine tool used in the manufacturing process. This model, formatted in the X_T file format, accurately depicts the machine's kinematics (movements). Creating this model typically involves collaboration with a technician from GO2cam International or a reseller to ensure compatibility with the post-processor.

Machine Compatibility

MTE offers impressive compatibility across a vast array of machine tools, seamlessly integrating with most conventional machining setups. This versatility empowers users to leverage MTE's capabilities for a broad spectrum of manufacturing applications.

Activating the MTE module in your GO2cam license unlocks a new tab. This tab offers three dedicated menus for:

Tooling: This menu allows you to define and manage the tools you'll be using in your machining project. This includes assigning tool numbers and ensuring compatibility with your chosen machine setup.
Control: The Control menu provides a comprehensive set of options for manipulating and customizing the MTE simulation environment. You can likely use this menu to start, pause, and adjust the simulation playback, or access specific views and settings for a more detailed analysis.
NC File: This menu facilitates interaction with the NC file that drives the MTE simulation. You can potentially access information within the NC file, such as specific toolpaths or machine commands, for further verification and optimization of your machining process.

▶️ Watch a video introducing MTE with an example.
