Drilling - Turning

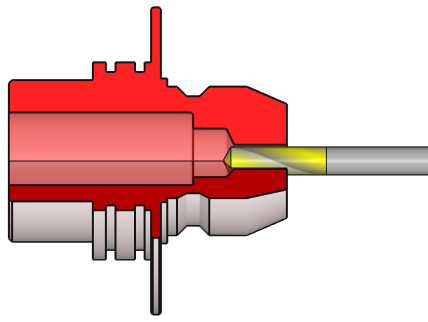

Drilling operation on a lathe machine.

Key Points

The drilling can be simple, deburring or chip-breaking,
The drilling depth can be defined according to the tool end or the tool diameter,
You can machine large bores, by defining a hole diameter larger than the tool. The toolpath will be excentrated, it is especially dedicated to the T-max type tools. Then you can choose to retract the tool from center (X0).
ability to preselect the tool by filtering the tool diameter by the selection.

Strategy Parameters

Dialog Area	Parameters
Toolpath	Piloted point	Pilot type
Extra Options	Dwell	Final dwell
Extra Options	Dwell unit
Machining Strategy	Drilling	Depth calculation
	Lead out distance	Drilling Depth
	Pass Depth	Last pass depth
	Hole diameter (excentration of the tool)	Back by the center axis

Movement Parameters

Dialog Area	Parameters
Approach and Return Characteristics	Safety distance

Technology Parameters

Dialog Area	Parameters
Cutting Conditions	Quality	Level
	Cutting speed	Spindle speed
	Speed range	Feedrate per tooth
	Feedrate	Feedrate in Z
	Spindle direction	Rotation Speed of Tool
	Coolant number	Specific coolant
Tool Numbering	Tool number	Specific Number
Tool Numbering	Length compens. nb
Users Fields	Comment	Control Device
Users Fields	Machining Set

Options Parameters

Dialog Area	Parameters
Management of collisions	Gouge check on stock	Offset XY
Management of collisions	Safety Area	Offset Z
