Cycles: All General Operations
In the roughing and finishing operations, you can choose to machine or avoid the grooves (undercut) of the geometry.
You also have the possibility to determine a minimum value of groove that you allow to be machined. For example, if you enter 10 mm, all the grooves which width is equal or inferior will not be machined.
|

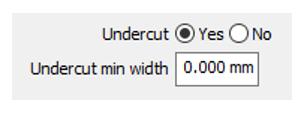

Undercut: No |
Undercut: Yes |
Undercut: Yes with mini value=10 mm |
|
|
|
Please note that the toolpath done while going down the groove is determined by several parameters:
-
the shape of tool insert: result will be different with a C, a D or other inserts,
-
the front and the back angle clearances that are safety angles defined to protect the tool insert.
|
▶️ You can watch a video to view the effect of this parameter:
|
