Axis system to Axis system


The Move axis system to axis system is a new command that help you to move any geometry in any define axis set by the user.

We can access it in the Edit>Move geometry or right click>move geometry.

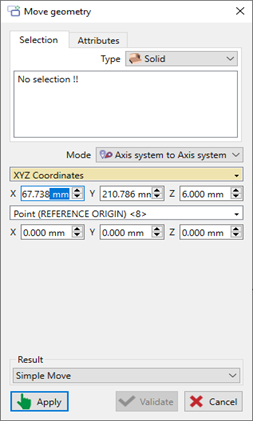

  • The appropriate type is selected based on the geometry being manipulated (which could be wireframes, solids, etc.)

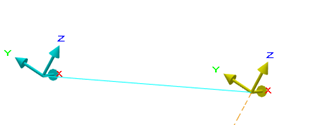

  • Upon selecting the 'mode,' which is 'Axis System to Axis System,' two axes are displayed: a yellow axis serves as the reference, while the blue axis determines the movement of the geometry.

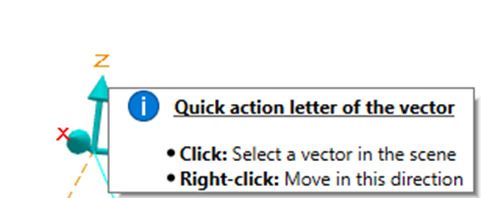

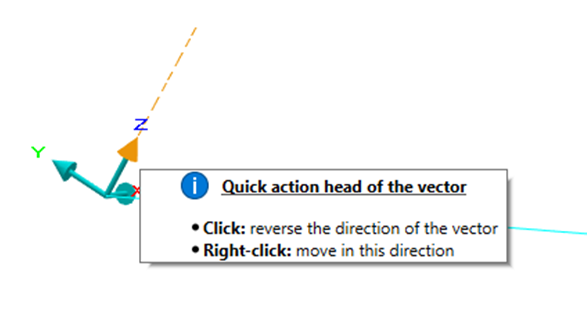

  • To change the direction of the axis users can click directly on the ‘action head’ to invert it or they can click on the 'action letter' and afterwards click on two points along the line segment to define the axis direction.


image-20240528-091118.png Find a simplified case study for better understanding.

Move axis system to axis sytem.png

▶️ Dive deeper and explore the details of a real case where you can use the Move axis System to System.

Move axis system to axis sytem-20240802-055006.png

"It is recommended that the user selects the geometry as the last step to avoid confusion."
