Turning - Insert Holder for Threading Tool

Introduction

This video will show how to create the insert of a tool for thread machining.

▶️ You can watch a video at the bottom of page: Click here

General rule for positioning System of Axis

Step 1:


Define the Z axis normal to surface.

Step 2:


Rotate X axis pointing towards the body of the toolholder.

Step 3:


Place the system of axis.


We have got 3 types of cases.

1.
Create insert holder for threading tool 01.png

Holder with a protruding cylinder (symmetrical).

2.
Create insert holder for threading tool 02.png

Using Z direction of insert face and positioning origin.

3.
Create insert holder for threading tool 03.png

Using inscribed wireframe circle from insert to position system of axis.

Creation of turn tool holder

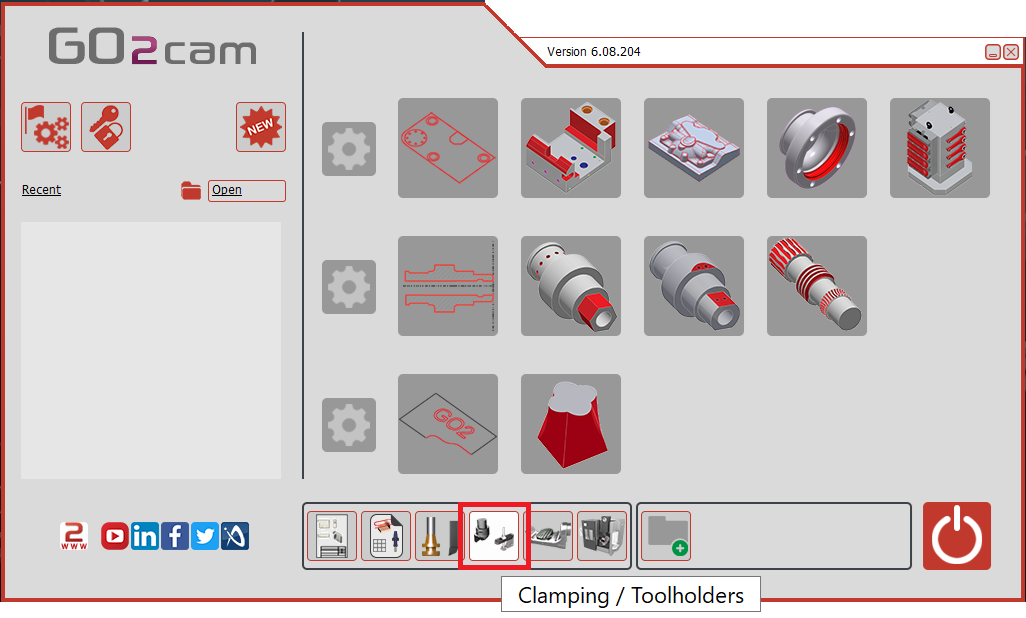

Select the “Clamping / Toolholders” module in the Homepage.

Click the GO button

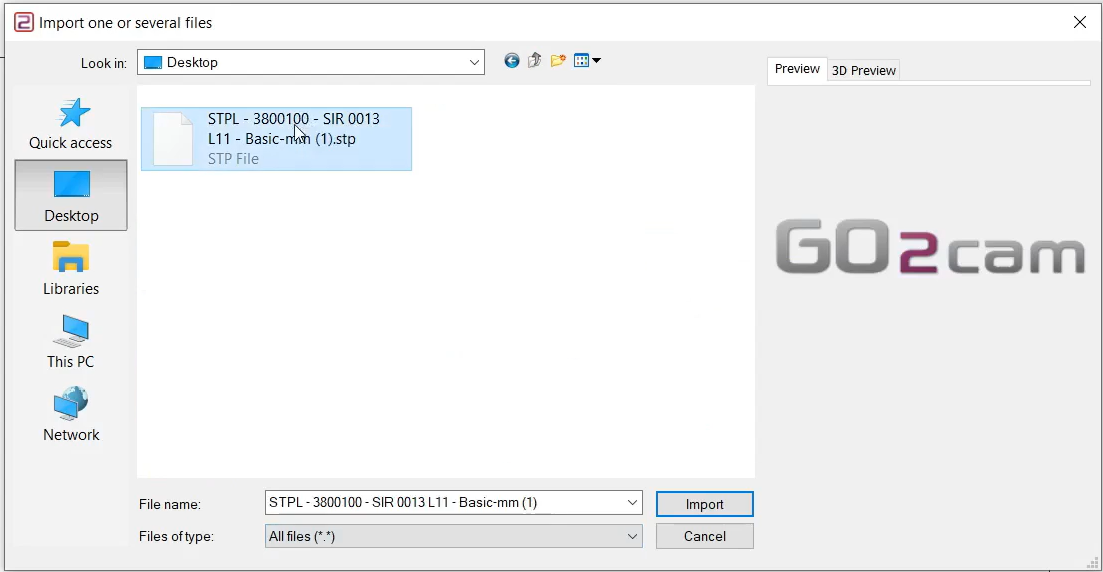

Select the file to import
Create insert holder for threading tool 04.png

Choose the import option you want to apply on the solid.

Click “Apply”






Note: You can also import the system of axis from the solid CAD files by activating the options ' Wireframe Import'.

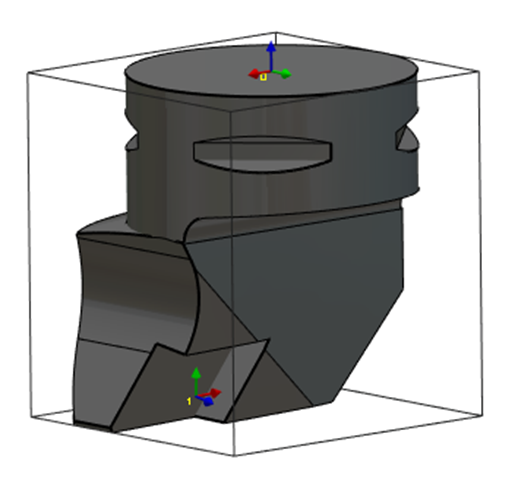

This is very useful to create holders by importing STEP files from Sandvik, Iscar databases, etc. It enables to recover the systems of axis for the position of insert, for example as shown for the turning tool on the image on the right.


Click on the tab “Creation” then “Tool Holders” menu

Click the command to create system of axis

Select the tool to define the position of system of axis
Single mill tool holder.png

Select the surface/point that will be the point origin of system of axis.

The system of axis referenced 0 define the point that will mounted on the previous element.

The previous element can be a tool support or another tool holder component.

There are two methods to add the system of axis:

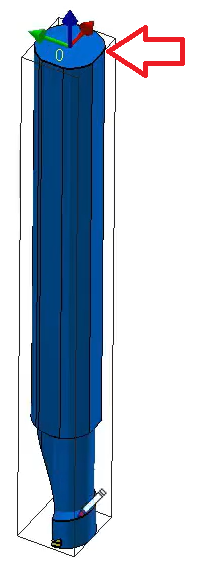

Select the top surface of the tool as shown with the red arrow. Make sure to zoom in when selecting the face.
Create insert holder for threading tool 05.png

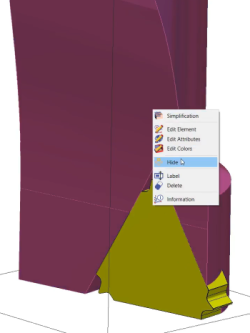

Hide the toolholder’s body.
Create insert holder for threading tool 06.png

Use circle creation to draw a 3 point circle wireframe on the inside face (the face touching the toolholder body) of the insert.
Create insert holder for threading tool 07.png

Unhide the toolholder’s body and delete the insert.
Create insert holder for threading tool 08.png


Select the command to create system of axis again

Use the command 'Selection of an insertion axis' to select the inside face to place the z axis normal to it.

Create insert holder for threading tool 10.png

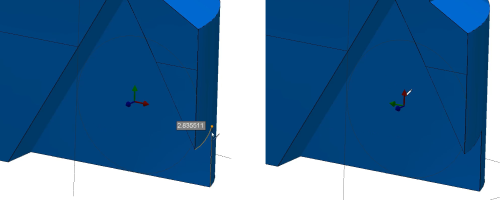

Use the 'Selection of a reference axis' to orient the X axis as shown.

Create insert holder for threading tool 13.png

Using CTRL+Shift key to place the system of axis in the middle of the drawn circle via the 'Selection of the origin' command.

Create insert holder for threading tool 14.png

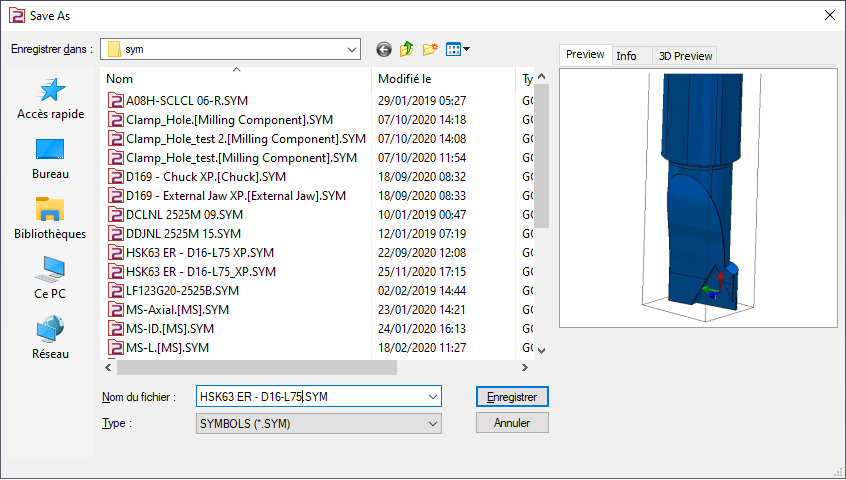

Save the file in your symbol folder to use it in GO2cam.
Create insert holder for threading tool 15.png

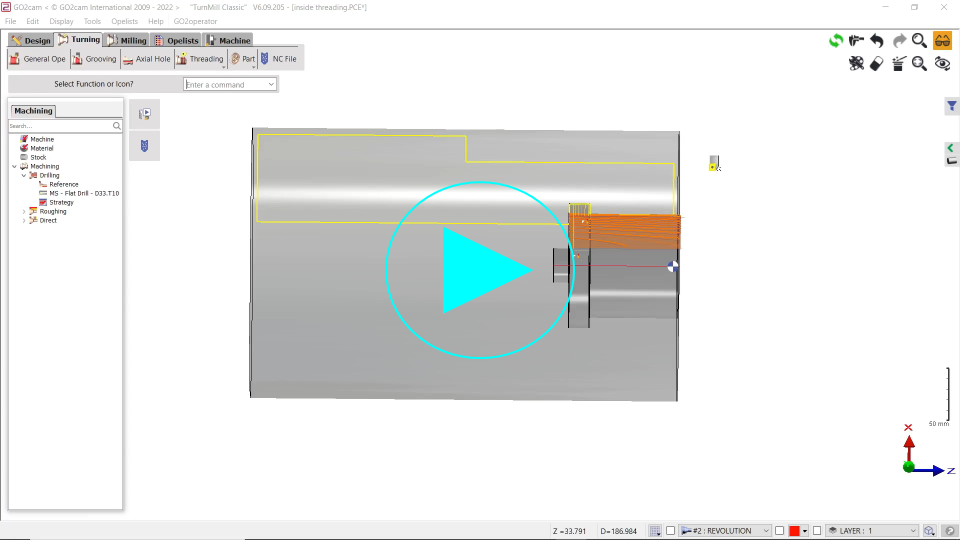

▶️ You can watch a video about the creation of insert holder for threading tool:


Create Insert holder for threading tool.png
