Hole on a Slope

Presentation

This function allows you to create holes according to B axis. The corresponding plane is automatically created.

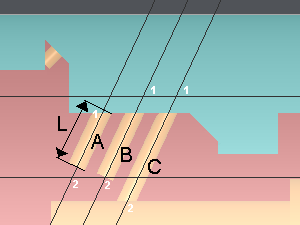

To create a B axis hole plane

1. Enter the depth value

2. Click on the starting point on the hole axis (1)

3. Click on a second point to give the direction of the hole axis (2)

Note: the second point only gives the axis direction, it does not need to be on the geometry.
