Predefined Shapes

This function enables you to create geometry and planes to machine with a Y or a C axis. Several shapes are predefined and the associated planes and the 2D profiles for machining are automatically created.

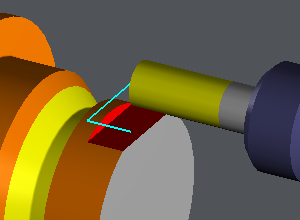

Axial Plane

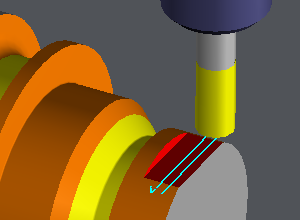

Radial Plane
