Vice with 2 Mobile Jaws

Introduction

This page explains how to create a vise with two symmetrical mobile jaws for a Milling machine.

▶️ You can watch a video at the bottom of page: Click here

Creation of Symmetrical Vice

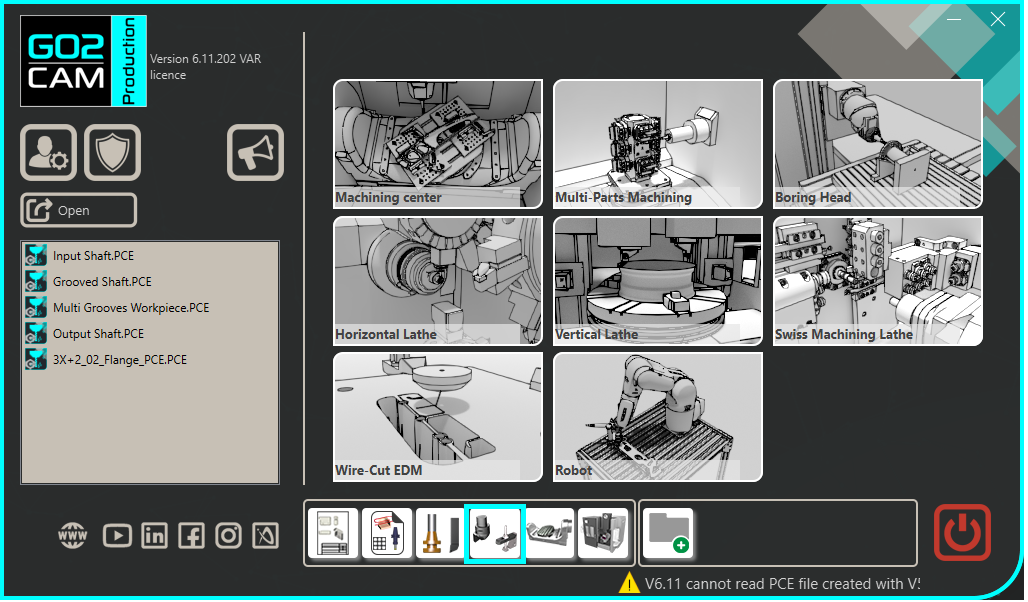

Select the “Clamping / Toolholders” module in the Homepage.

Click the GO button

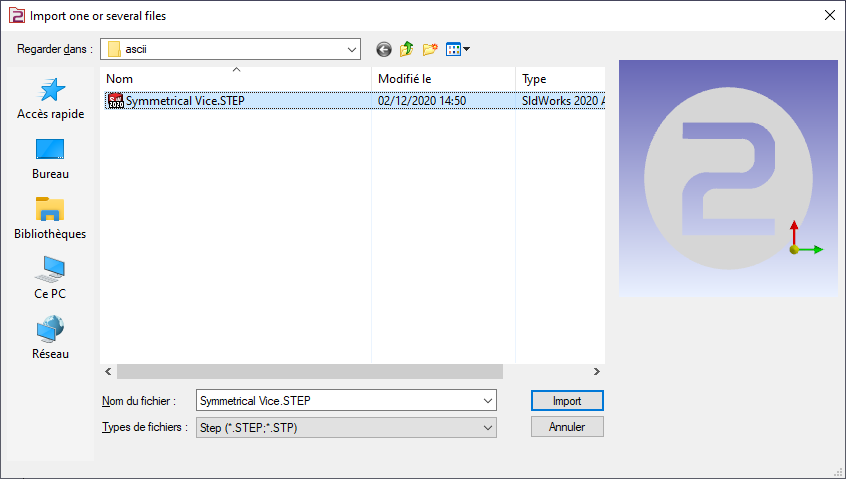

Select the file to import

Choose the import option you want to apply on the solid.

Click “Apply”

Click on the tab “Creation” then “Vice and Clamps” menu

Click the command to create system of axis

Select the tool to define the position of system of axis
Single mill tool holder.png

Define the system of axis 0.

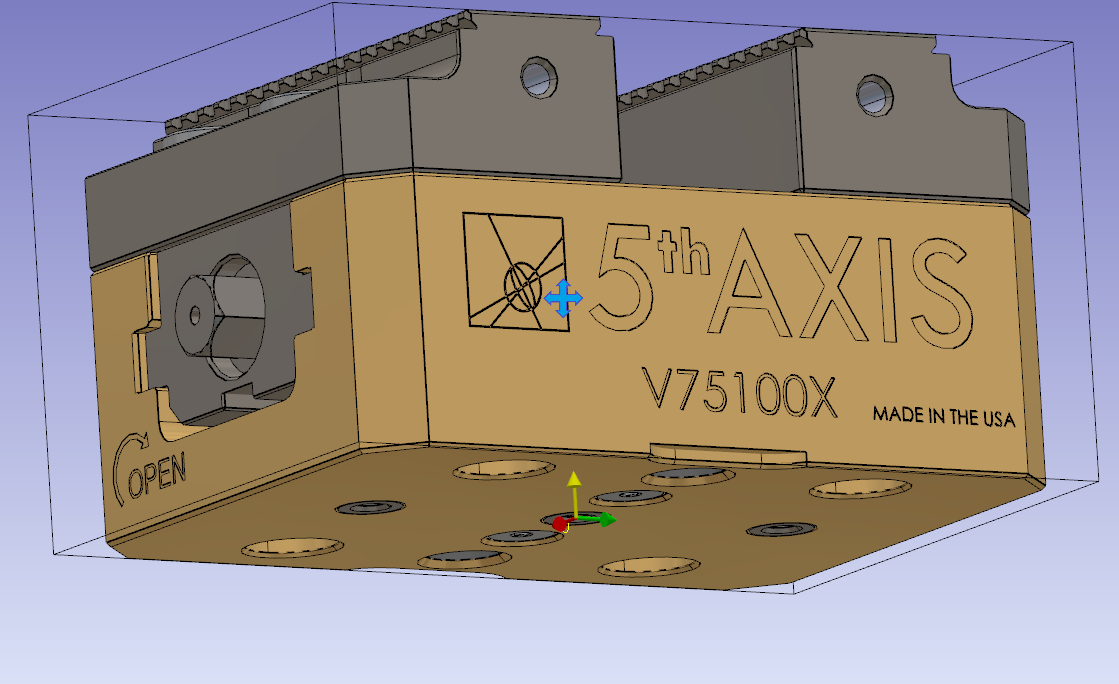

Do a click on the bottom face and validate.

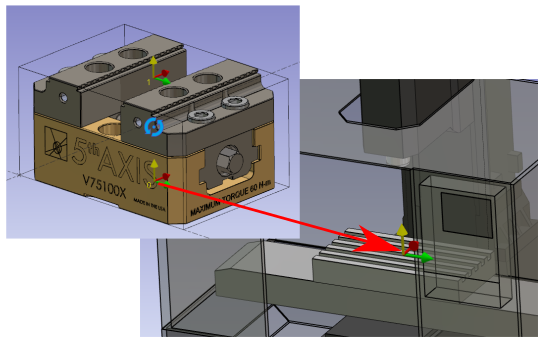

The system of axis will match with the system of axis, of work assembly support, where the vise will be mounted.

Do the same command to create the system of axis 1.

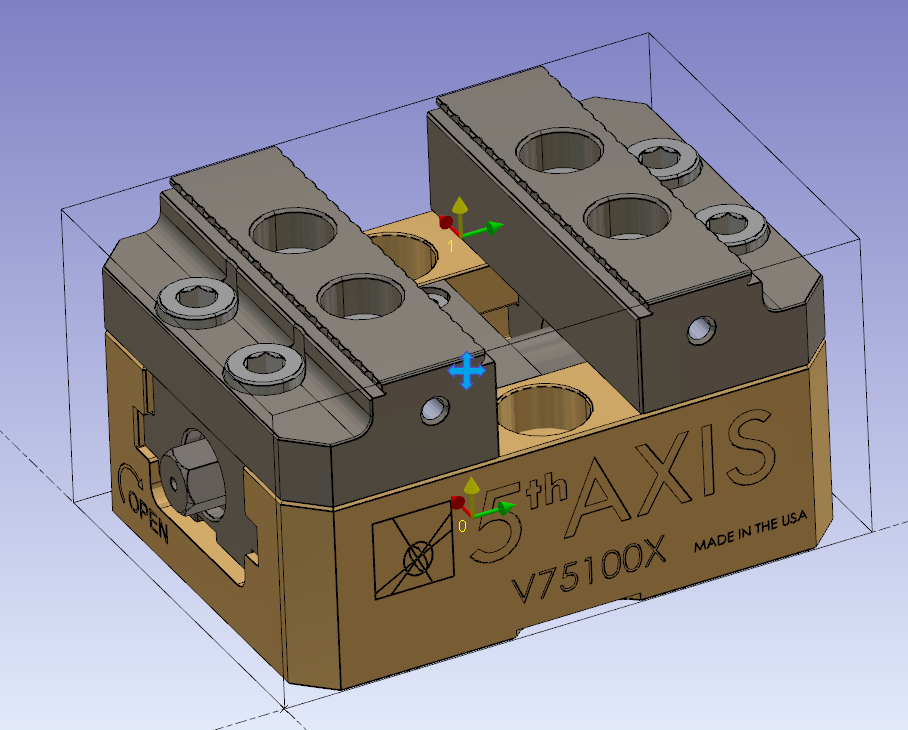

The system of axis 1 will be the point you can drive when you set the position of the vice on the part.

For symmetrical vice, it should be centered between the two jaws.


Note: For the height of the axis, use the Z Altitude and pick the topmost part of the vice.

Click on the component vectors tool.

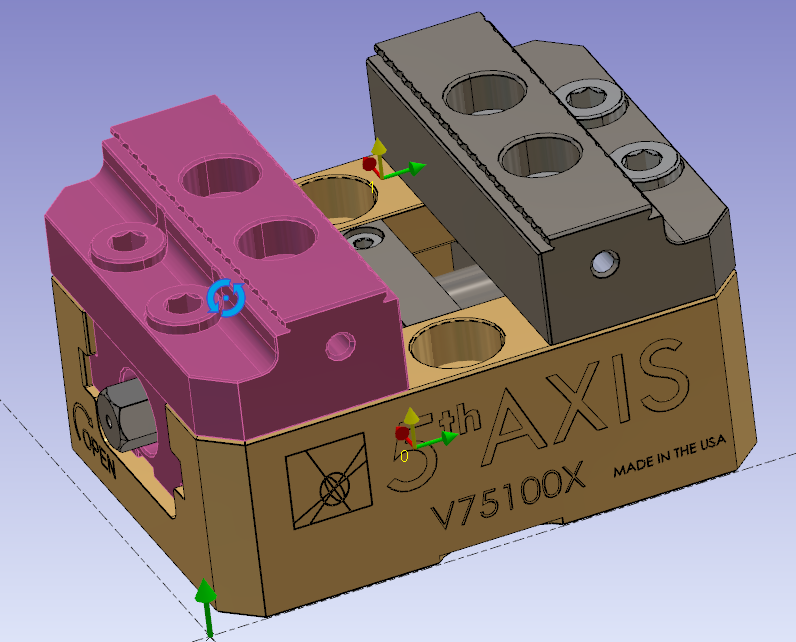

Select the first jaw as mobile element.

Then click the tool to create direction of movement.

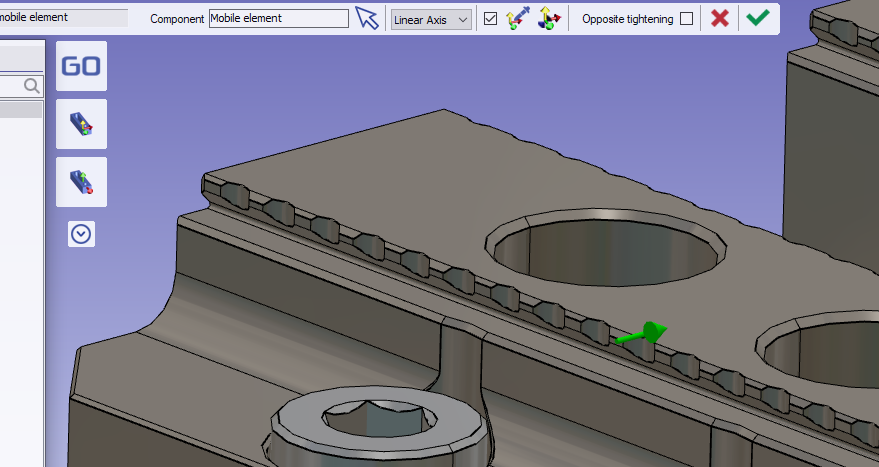

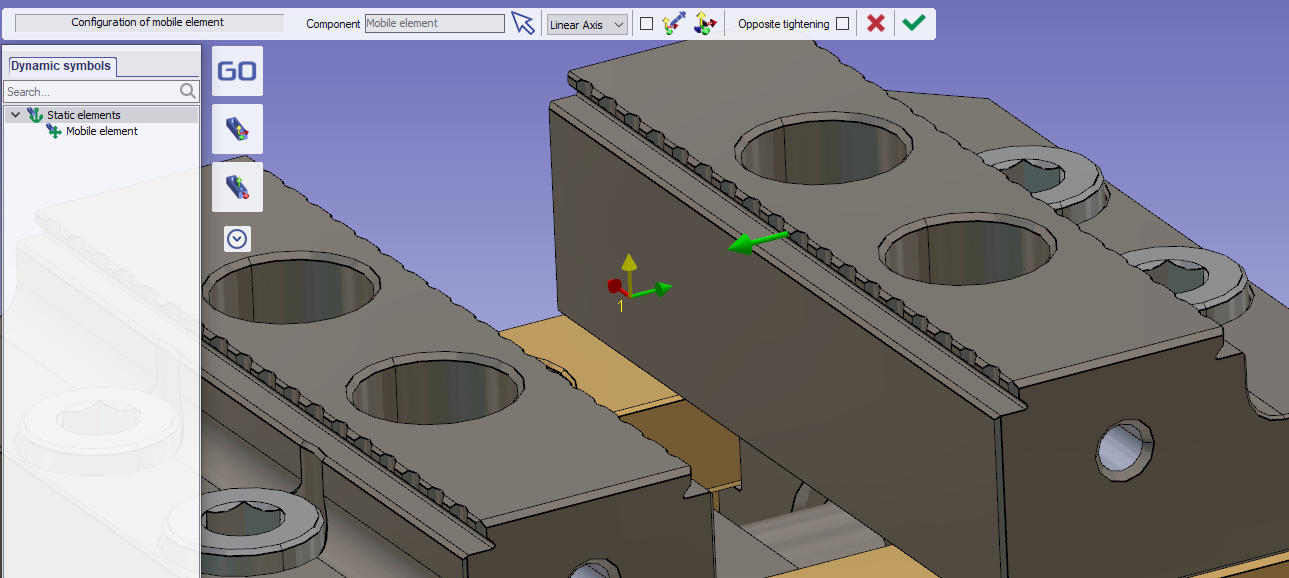

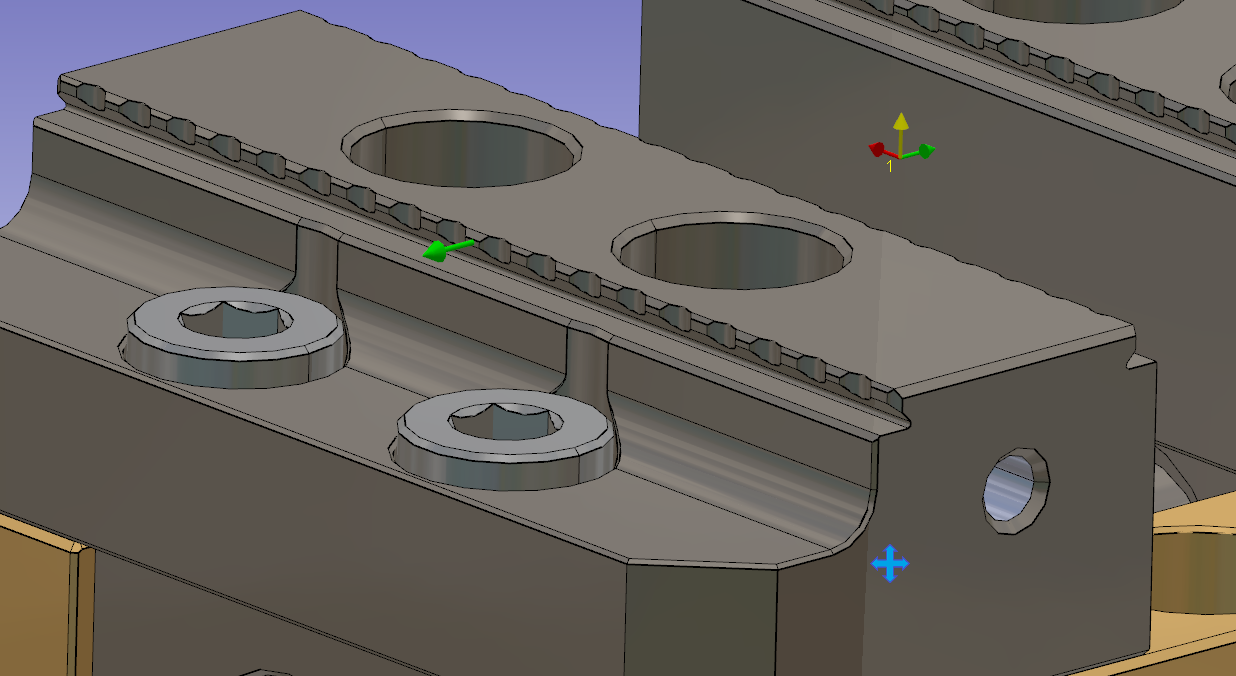

Click the face of mobile jaw.

Validate the mobile element creation.

Do the same operation for the second jaw.

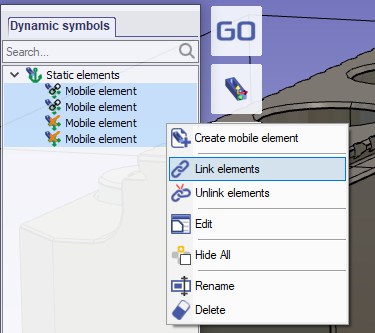

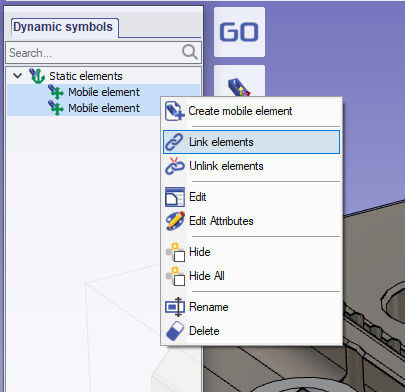

To synchronise the movement of two jaws, select both on the left tree. Do a Right-click to display the popup menu then “Link elements”.


The linked elements will move with the same distance in the direction defined on it.

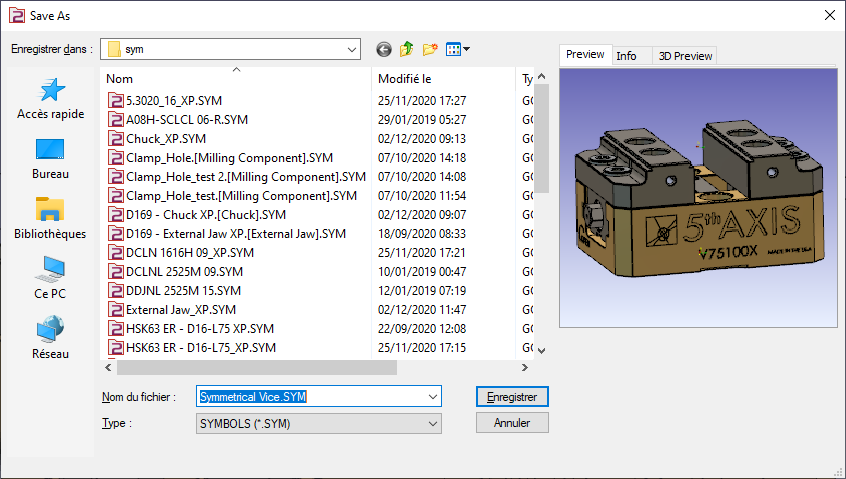

Save the file in your symbol folder to use it in GO2cam.

Complementary information

This kind of vice gives the possibility to invert the jaw and have another tightening position.

It is possible to configure it in the same symbol. To do this, follow the next steps.

Open the previous vice

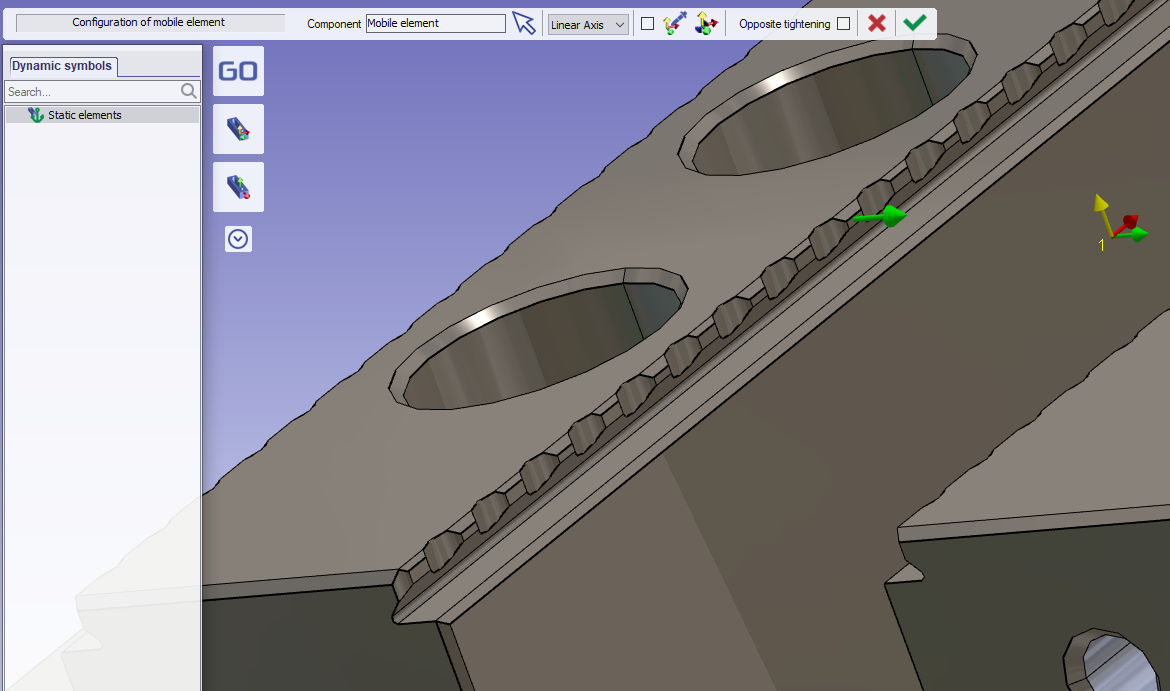

Add mobile element without solid.

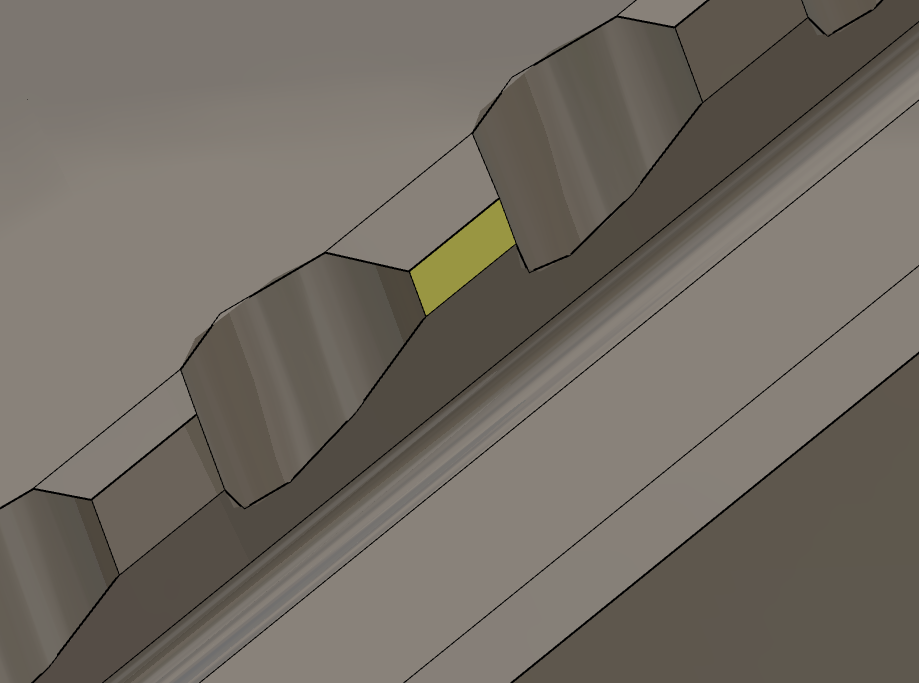

Then click the face as vector.

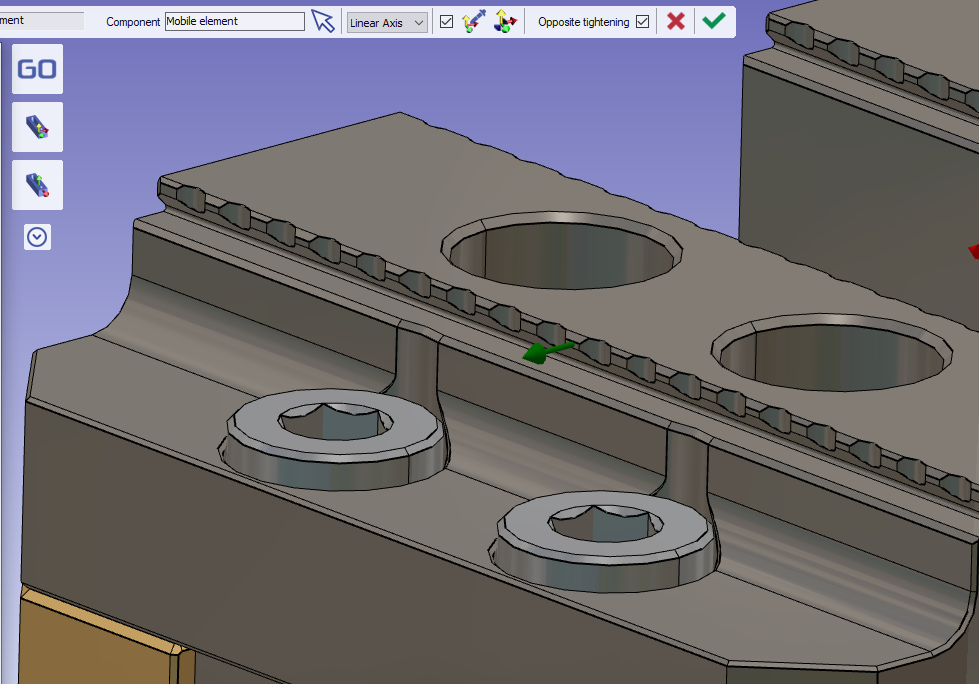

Invert the direction of the vector to set the movement opposite to the selected face.

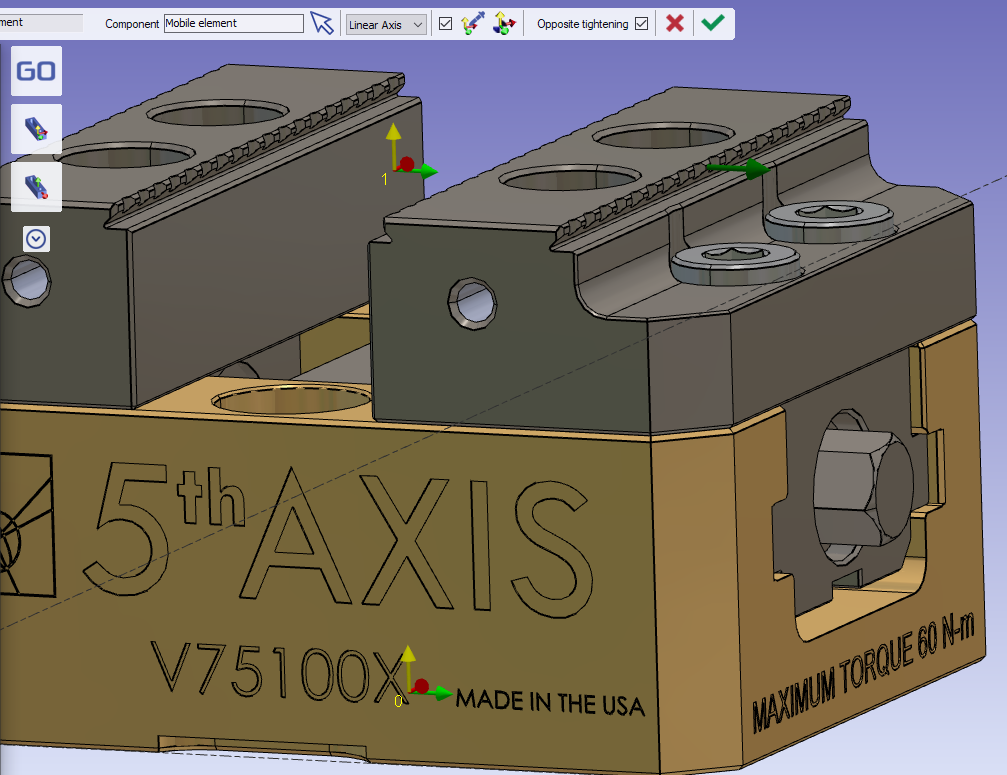

Check the “Opposite tightening” option to invert the display of the vector.


The color of the vector changes and the display is inverted.


Then validate the new mobile element.

Do the same for the other side.

Link the four mobile elements together.

Save your symbol


Important:

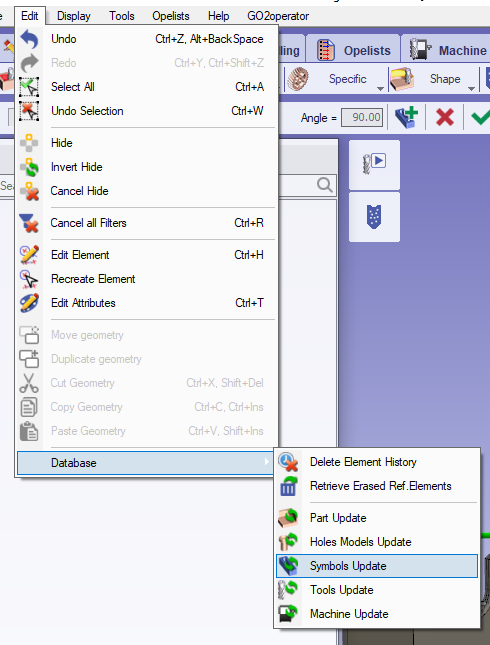

If you want to try it in a project that already use the first version of the symbol, think to update the symbol database.

Key points

  • The system of axis 0 will be mounted on the work assembly support of the machine.

  • The system of axis 1 will be used to position the vise on the stock.

  • It will have two mobile elements.

  • The mobile elements must be linked to move together.

You can define more than one system of axis to position the vise on the stock. To do this, add system of axis.


▶️ You can watch a video about Symmetrical vise:


Vice with 2 Mobile Jaws.png
