Vice with Multi-Tightening

Introduction

This page shows the creation of vectors of components of a vice and you will see how different positioning are made.

▶️ You can watch a video at the bottom of page: Click here

Creation of Vice with Multi-Tightening

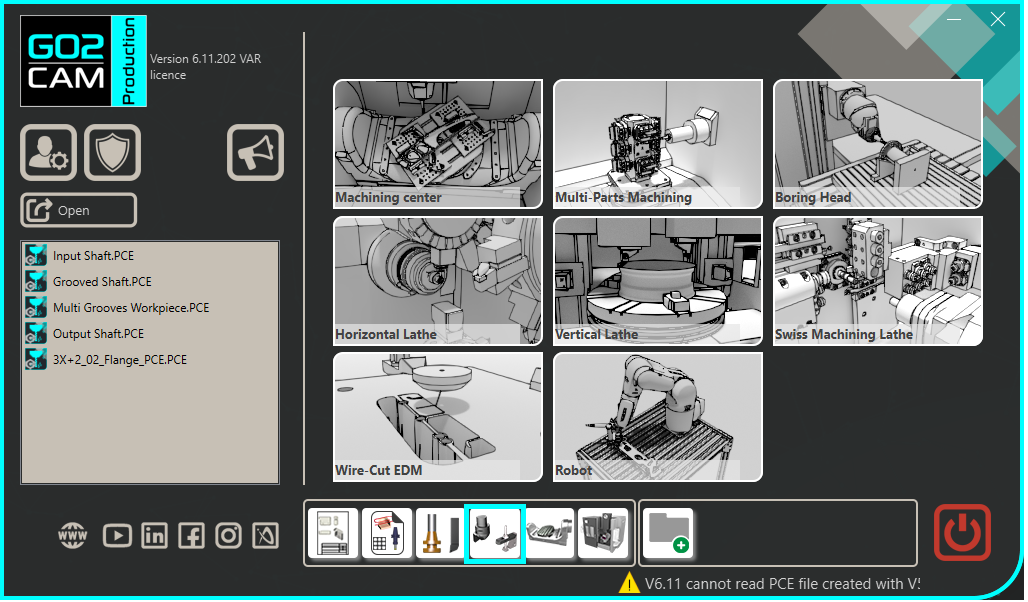

Select the “Clamping / Toolholders” module in the Homepage.

12.png in the Homepage screenshot.


Click the GO button

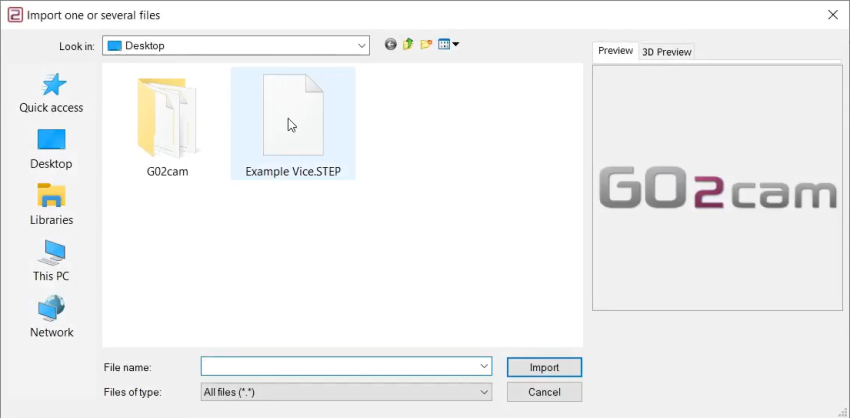

Select the file to import

Vice with Multi-tightening 01.png

Choose the import option you want to apply on the solid.

Click “Apply”


Click on the tab “Creation” then “Vice and Clamps” menu


Click the command 'Component Vectors' to create the vectors for the mobile elements.

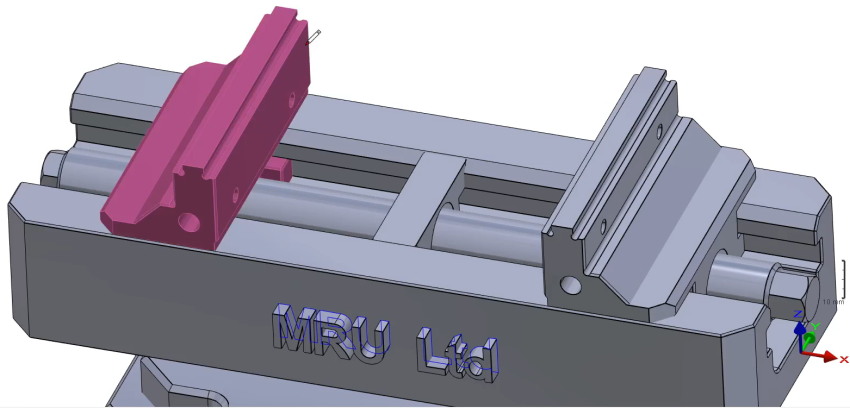

Select the mobile part which will be associated to the vector.

Vice with Multi-tightening 02.png

Select the command 'orientate the axis' to define the position of system of axis.

Vice with Multi-tightening 03.png

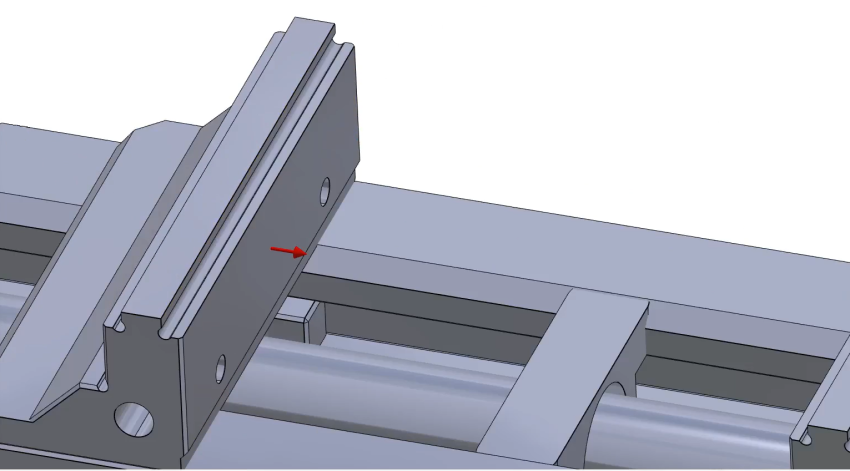

And click again on the reference face and then the ‘green tick’ to validate.

Vice with Multi-tightening 04.png

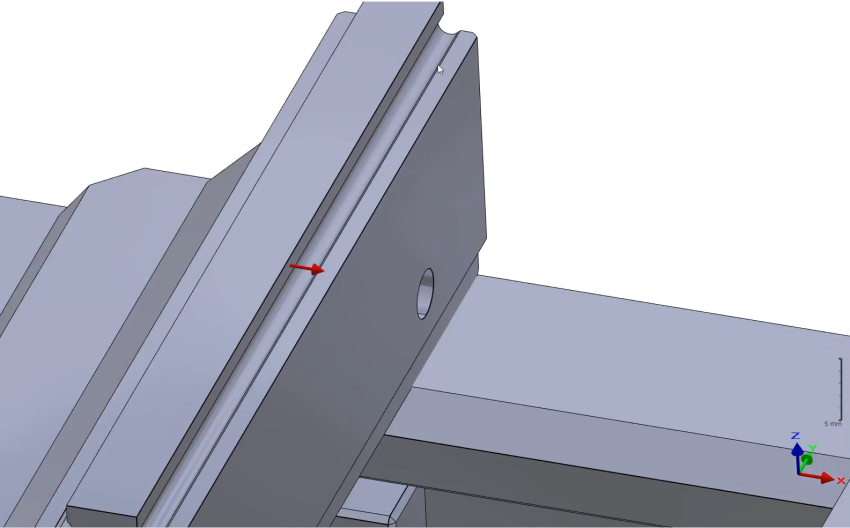

We select the commands 'Component Vectors'


then 'orientate the axis'


and click on the face of the mobile element to create the vector as shown.

Vice with Multi-tightening 05.png

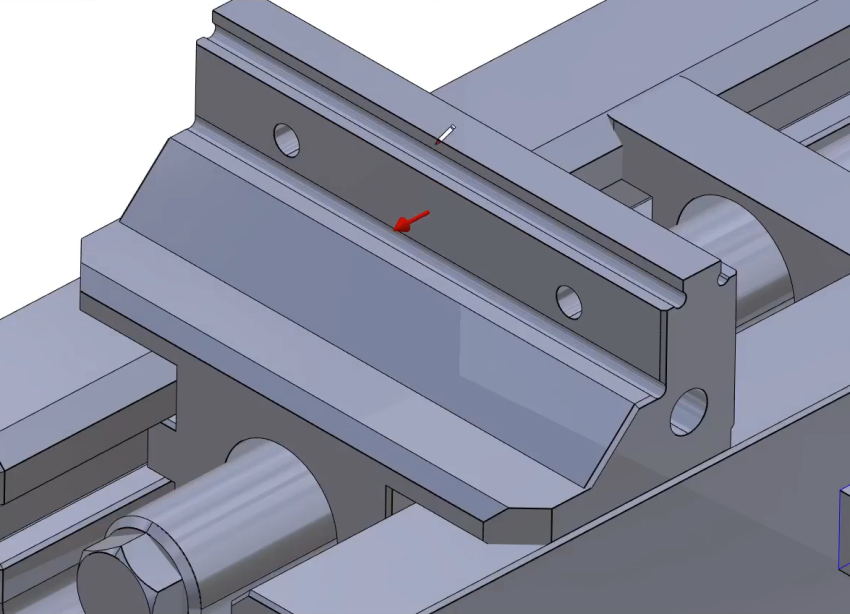

Repeat the same procedure to create a create on the opposite side of the mobile element as shown.

Vice with Multi-tightening 06.png

Check the box 'Inversion of the vector direction' to invert the vector direction.

Since it is the opposite side of the jaw, activate the checkbox for 'Opposite Tightening', then validate with the green tick.

Vice with Multi-tightening 07.png
Vice with Multi-tightening 09.png

On the dynamic symbols tree, select all 3 ‘Mobile elements’.

Then right-click and select 'Link elements'.

Vice with Multi-tightening 10.png

Repeat the process for the second jaw. First, click the command 'Component Vectors'


to create system of axis.

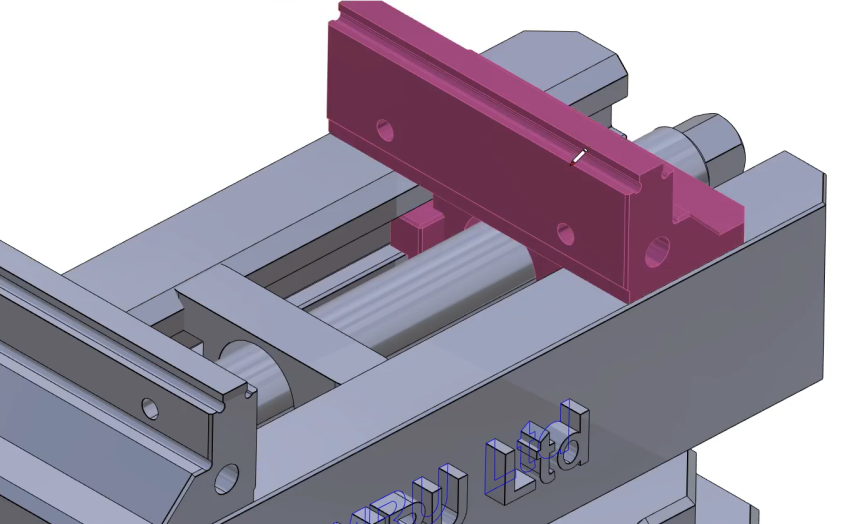

Then select the mobile element as shown.

Vice with Multi-tightening 11.png

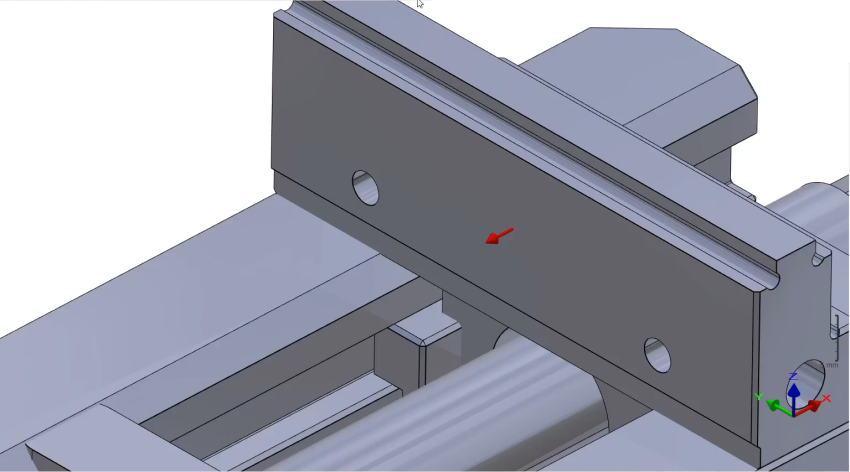

Select 'orientate the axis'


and click on the face of the mobile element to create the vector as shown.

then validate.


Vice with Multi-tightening 12.png

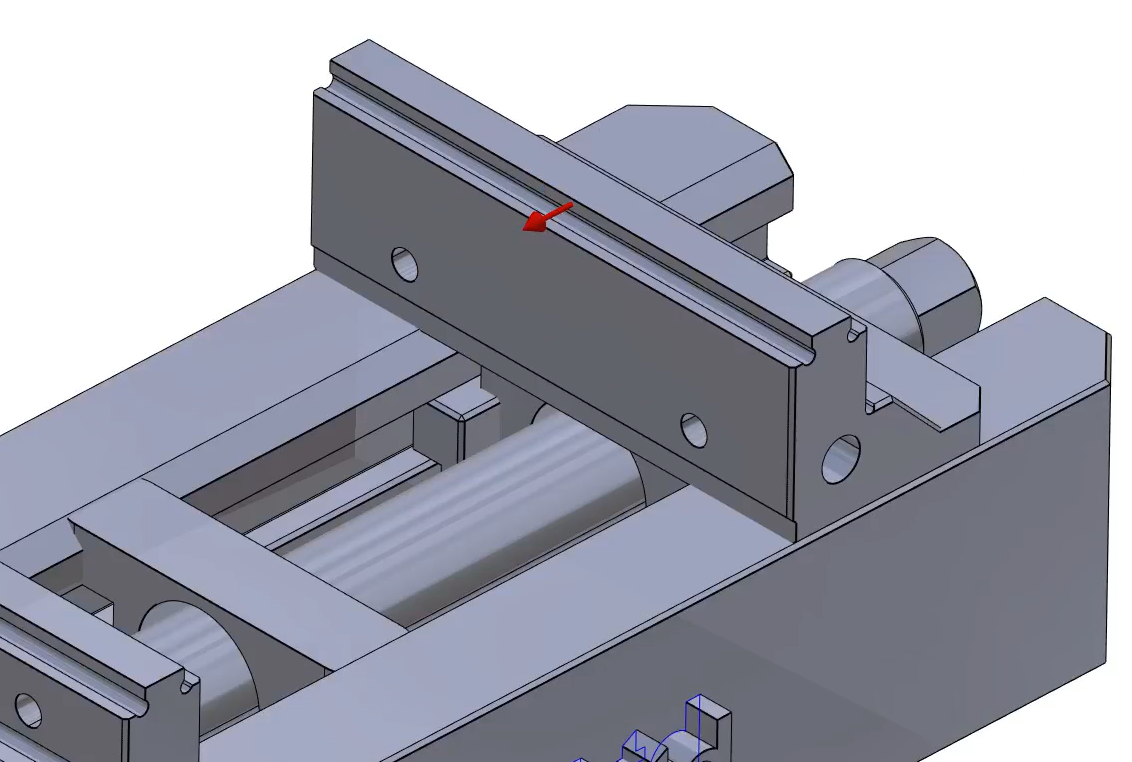

Click on the command 'Component Vectors'


and select 'orientate the axis' again


then select the face shown to create the vectors.

Then validate.

Vice with Multi-tightening 13.png

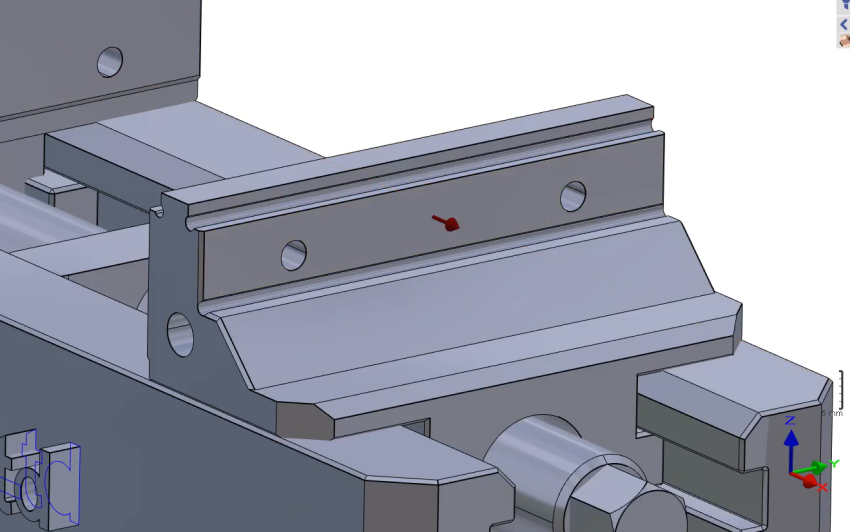

Repeat the procedure on the other side of the second jaw.

Then link the 3 newly created elements.

Vice with Multi-tightening 07.png
Vice with Multi-tightening 09.png
Vice with Multi-tightening 14.png

Click the command 'Creation of System of Axis'.


Select the tool to define the position of system of axis

Single mill tool holder.png

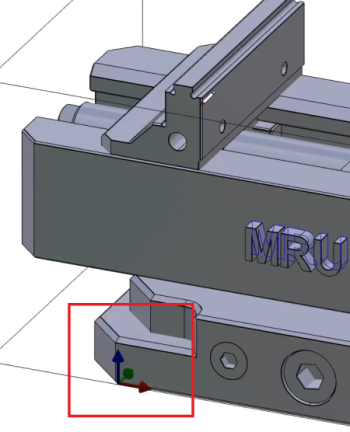

Define the system of axis 0 as shown on the image.


Vice with Multi-tightening 15.png

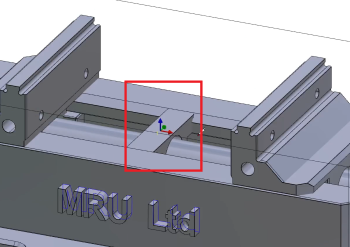

Repeat the same process to define the system of axis 1 as shown on the image.

Vice with Multi-tightening 16.png

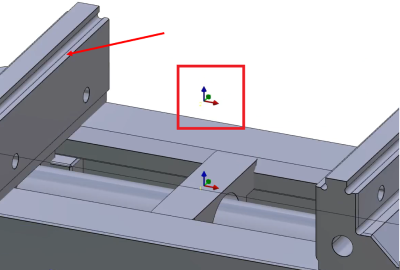

Create the System of axis 2 on the same position as system of axis 1 but at an altitude of 89 (either type-in or click on the face shown by the arrow).



Vice with Multi-tightening 17.png

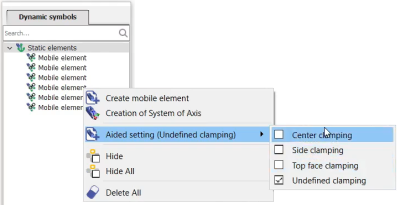

On the dynamic symbols tree, Right-Click on Static elements, go on ‘Aided setting' and check 'Center clamping’

Vice with Multi-tightening 18.png

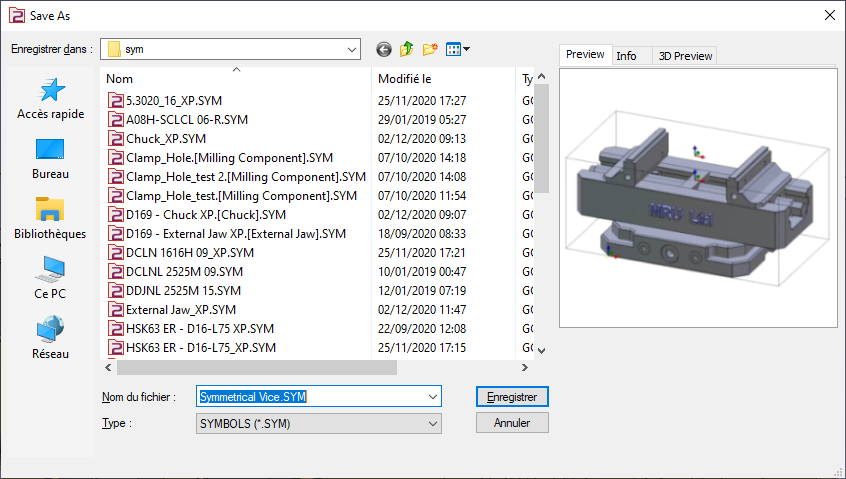

Save the file in your symbol folder to use it in GO2cam.

Vice with Multi-tightening 19.png

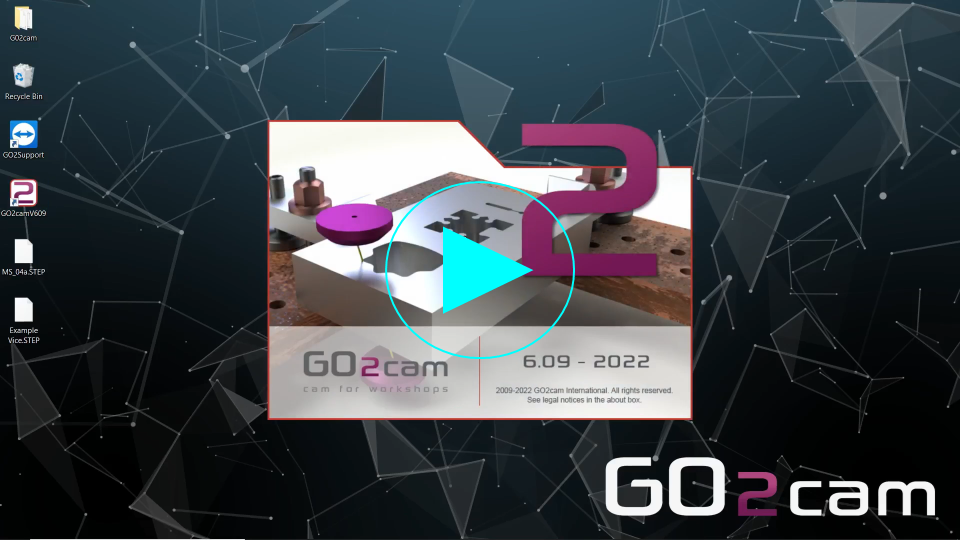

▶️ This video shows how to create a vise with Multi-tightening and how to use it on a solid.
