5X Drilling

This cycle is a roughing toolpath dedicated to any type of pocket.

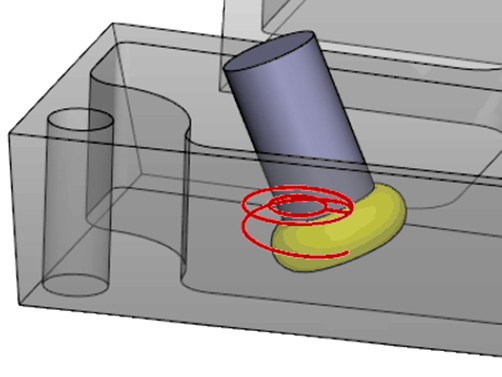

The toolpath is circular and the entry is an helix defined according to the plunge angle of tool.

Key Points

  • GO2cam calculates the best plunge point in the pocket.

  • Ability to define a maximum tilt angle to remove large amount of materials with the side of the tool.

This toolpath is well adapted to toric cutters.

Strategy Parameters

Dialog Area

Parameters

Toolpath Strategy

Diameter of machining

Limitation of Machining

Limitation Area

Allowances

XY Stock allowance

Z Stock allowance

Normal stock allowance

5 Axes Machining

Maximum tilting angle

Movement Parameters

Dialog Area

Parameters

Safety (in Z)

Rapid plane alt.

Safety distance

Safety (in XY)

SD/ Tool shank

Management of toolholder

Technology Parameters

Dialog Area

Parameters

Cutting Conditions

Quality

Cutting Speed

Feedrate/tooth

Spindle direction

Spindle speed

Feedrate

Sp. speed range

Plunge feed

Specific coolant

Coolant number

Tool Numbering

Tool number

Specific Number

Length compensation number

Diameter compens. Nb

Users Fields

Comment

Control Device

Milling Set

Options Parameters

Dialog Area

Parameters

Behaviour on the clamps and components

Gouge Check

Offset XY

Safety area

Offset Z

Curves Computing

Curve tolerance

Curve segmentation
