Definition

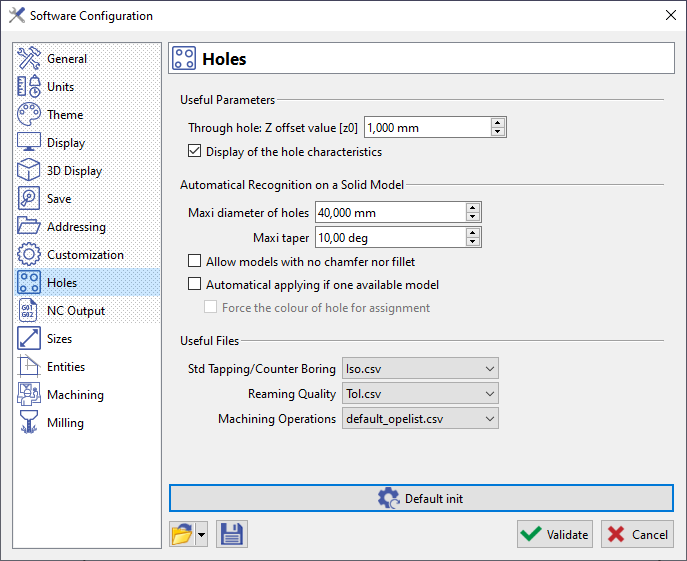

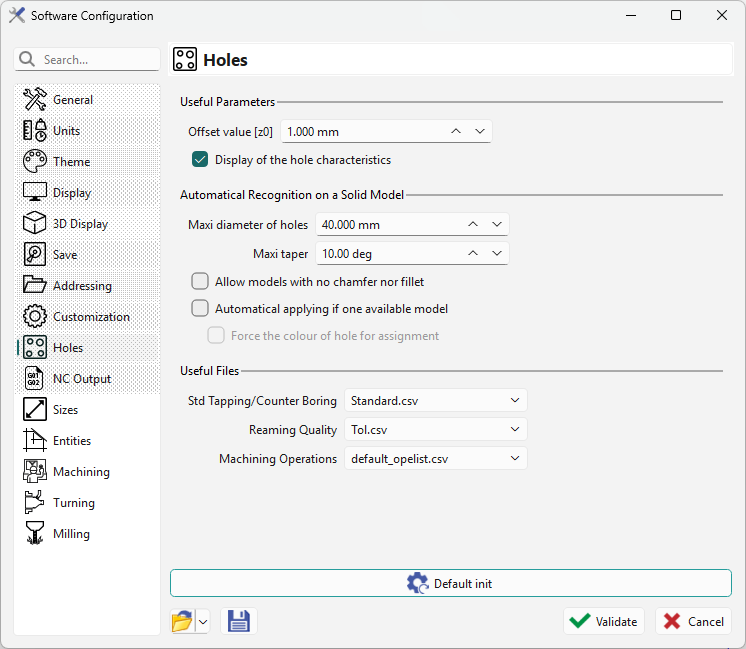

This page offers options dedicated to the recognition and calculation of holes.
|
This page has three sections:
|
|
Useful parameters
|
Through holes: Z offset value[z0] |
This value is the Z overcutting value when machining a through hole. This value is used as the default value while defining standard holes. |
|
Display of hole characteristics |
You can select whether or not, you want to display on the screen the diameter and depth values of a hole. |
Automatical Recognition on a Solid Model
|
Maxi diameter of holes |
The cylindric faces which diameter is inferior or equal to this value will be considered as holes. |
|
Allow models with no chamfer nor fillet |
You can choose the models that have no chamfer nor fillet. |
Useful Files
|
Std Tapping/Counter Boring |
*.csv files used for the creation of standard holes. |
|
Reaming quality |
*.csv files used for the creation of standard holes. |
|
Machining Operations |
*.csv files defining the machining cycles used in the standard holes |
