PP - T67 Okuma

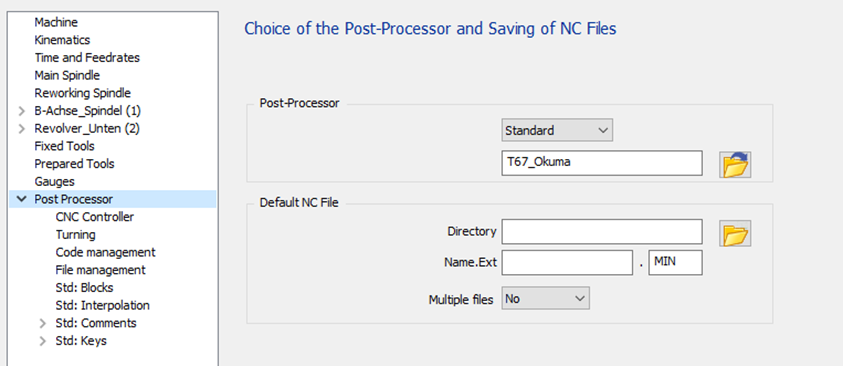

1       General Information



The standard has four configuration pages to manage all options available :

  • CNC Controller : contains the options about CNC.

  • Turning : contains the options of the turning technology.

  • Code Management : allows to specify some codes for NC output.

  • File Management : give some options for the NC file output.

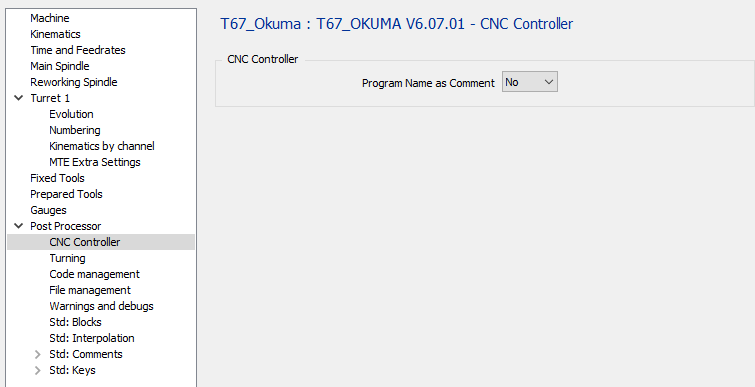

 2       CNC Controller page


2.1         CNC Controller - Program Name as comment

Option

Result

No

M30

%

Yes

(PART NAME)

M30

%

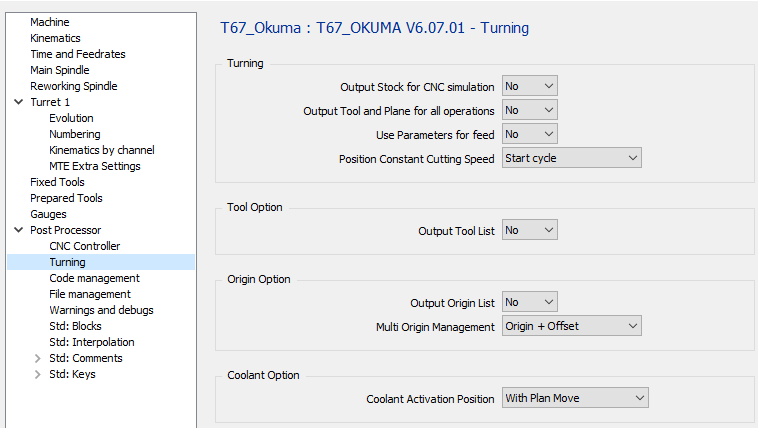

 3      Turning page


3.1          Turning – Output Stock for CNC Simulation

 No stock output for T67_Okuma standard post-processor.

Option

Result

No

T0101

Yes

T0101

3.2          Turning – Output Tool and Plane for all operations

Option

Result

No

O1000

(FACE)

TD=010001 M323

G00 X20 Z2

(ROUGH)

G00 X20 Z2

Yes

O1000

(FACE)

TD=010001 M323

G00 X20 Z2

(ROUGH)

TD=010001 M323

G00 X20 Z2

3.3          Turning – Use Parameters for Feed

Option

Result

No

TD=010001 M323

G00 X20 Z2

G01 Z-20 G95 F0.1

Yes

VSET  F1 = 0.1

TD=010001 M323

G00 X20 Z2

G01 Z-20 G95 F=F1

3.4       Turning – Position Constant Cutting Speed

Option

Result

Start cycle

TD=010001 M323

G50 S9000

G110 G96 S40 M04

G00 G90 X44.8 Z2.4

Start machining

TD=010001 M323

G97 S284 M04

G00 G90 X44.8 Z2.4

G50 S9000

G110 G96 S40 M04

G42 G01 G95 Z0. F0.1

3.5          Tool Option – Output Tool List

Option

Result

No

TD=010001 M323

Yes

(START TOOL LIST)

(T1 CMNG 04)

(T2 ...)

(T3 ...)

(END TOOL LIST)

TD=010001 M323

3.6          Origin Option – Output Origin List

No output for T67_Okuma standard

3.7          Origin Option – Multi Origin Management

No change for the standard T67_Okuma. No multi-origin management on Okuma.

Option

Result

Origin Only

Origin + Offset

With B axis machine :

The origin offset is outputted with the tilted plane function G127 with the G code G174.

3.8          Coolant Option – Coolant Activation Position

The second and third option will give the same output for turning operation.

There will be a difference by milling operations using livetools.

Option

Turning operation

Milling operation (livetool)

With Spindle

TD=010001 M323

S1000 M03

M08

G00 X15 Z2

TD=010001 M323

S1000 M03

M08

G00 X15 C0

Z2

With Plane Move

TD=010001 M323

S1000 M03

G00 X15 Z2 M08

TD=010001 M323

S1000 M03

G00 X15 C0 M08

Z2

With Plunge Move

TD=010001 M323

S1000 M03

G00 X15 Z2 M08

TD=010001 M323

S1000 M03

G00 X15. C0

Z2 M08

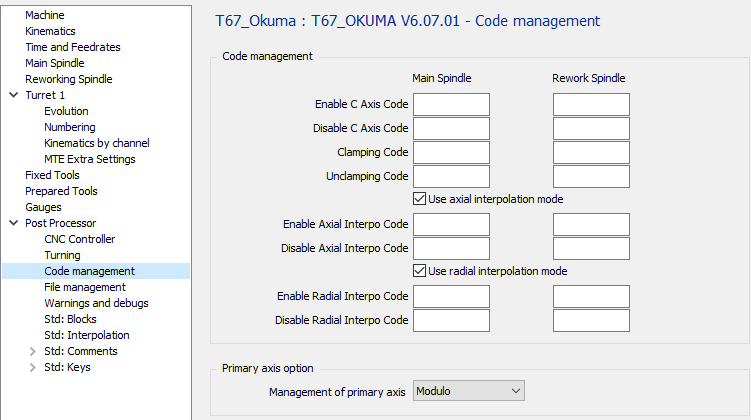

4       Code management page


4.1          Code Management – Enable C Axis Code

If the field is empty, the default code is M110.

Option

Result

“empty”

TD=010001 M323

S1000 M03

G17

M110

G28 G90 H0

C10

M51

TD=010001 M323

S1000 M03

G17

M51

G28 G90 H0

C10

4.2          Code Management – Disable C Axis Code

If the field is empty, the default code is M109.

Option

Result

“empty”

X200

M109

M09

M50

X200

M50

M09

4.3          Code Management – Clamping Code

If the field is empty, the default code is M147.

Option

Result

“empty”

C10

M147

G01 Z-10

M10

C10

M10

G01 Z-10

4.4          Code Management – Unclamping Code

If the field is empty, the default code is M146.

Option

Result

“empty”

G00 Z20

M146

C10

M11

G0 Z20

M11

C10

4.5          Code Management – Use axial interpolation mode

If machine don’t have code to output axial interpolation,it can be done in decomposed.

No circular interpolation will be output don’t use tool offset

Option

Result


Output axial operation with interpolation


Output axial operation decomposed

4.6          Code Management – Enable Axial Interpo Code

Option

Result

“empty”

G01 Z-5

G112

G01 Z-5

G112

4.7          Code Management – Disable Axial Interpo Code

Option

Result

“empty”

G00 Z20

G112

G113

G00 Z20

4.8          Code Management – Use radial interpolation mode

If machine don’t have code option to use interpolation, it can be done in decomposed.

No circular interpolation will be output don’t use tool offset

Option

Result


Output axial operation with interpolation


Output axial operation decomposed

4.9          Code Management – Enable Radial Interpo Code

Option

Result

“empty”

G107

G107

4.10       Code Management – Disable Radial Interpo Code

Option

Result

“empty”

G107

G107 C0

4.11       Primary axis option – Management of primary axis

Option

Result

Modulo

C0

C359

C0

Linear

C0

C359

C360

Incremental

Not manage by machine. Modulo will be used

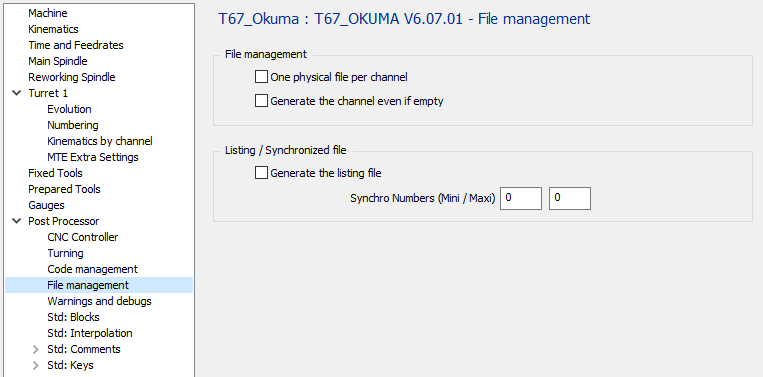

5       File management page


5.1          File Management – One physical File per Channel

Option

File 1

File 2


(FIRST CHANNEL PROGRAM)

M30



(SECOND CHANNEL PROGRAMM)

M30




(FIRST CHANNEL PROGRAM)

M30

(SECOND CHANNEL PROGRAMM)

M30

5.2          File Management – Generate the channel even if empty

Option

Result


If a channel is empty no output of the program


If a channel is empty, the program will be output but empty

(Just O1001 and M30 will be output)

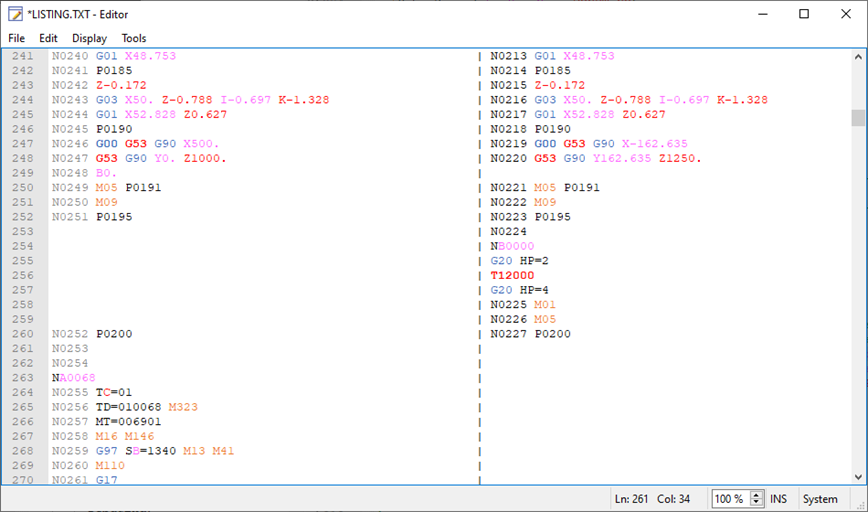

5.3          Listing / Synchronized File – Generate the Listing File

You need to set the Synchro Number mini & maxi to output the listing

Option

Result


Don’t generate the file to see the synchro between channels.


Generate the file to see the synchro between channels.

The file with the name Listing.TXT will be temporarily generated and shown.


5.4          Listing / Synchronized File – Synchro Numbers (Mini / Maxi)



Define here the synchronization Numbers (for example 1 – 9000)

The post processor will search for the synchronizations numbers between these mini and maxi values to generate the Listing.TXT file.

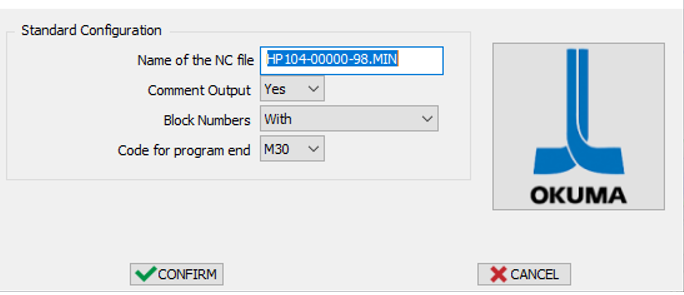

6       Launch page


6.1          Name of the NC File

Define here the Name of the generated NC file.

The extension is defined in the MCF configuration.

6.2          Comment Output

Option

Result

No

TD=010001 M323

Yes

(FACING)

(CNMG 04)

T0101

6.3          Block Numbers

Option

Result

With

N0001 TD=010001 M323

N0002 G00 X10 Z20

N0003 Z10

N0010 TD=010002 M323

N0011 G00 X20 Z20

N0012 Z10

Without

TD=010001 M323

G00 X10 Z20

Z10

TD=010002 M323

G00 X20 Z20

Z10

Tool Change Only

N0001 TD=010001 M323

G00 X10 Z20

Z10

N0002 TD=010002 M323

G00 X20 Z20

Z10

6.4          Code for Program End

Option

Result

M30

M30

M02

M02

  7 Specific informations

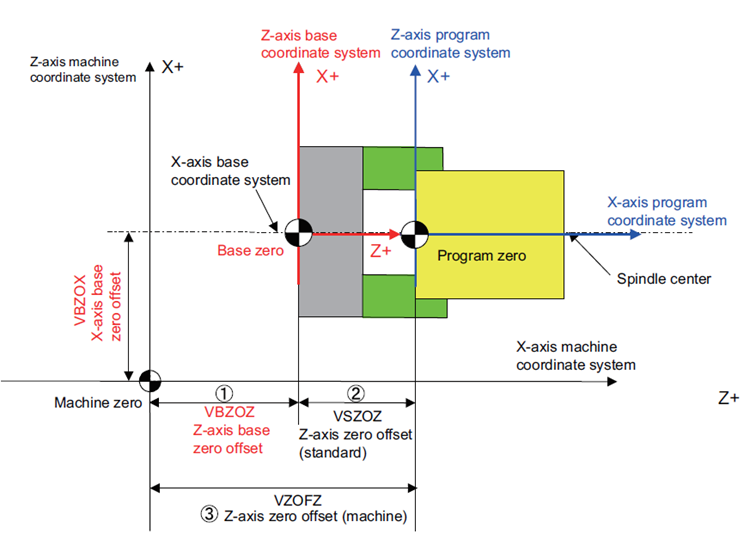

7.1          MTE movement from the machine origin

Because the points are given in the system of axis of the machine, if there is 2 turrets not at 180 degrees, you have to recompute the X value to output a correct value in the turret axis system.



On Okuma machine there is no using of program origin. We have to program with using machine variable to be able to program fixed point from the machine origin.

We have to cancel the tool offset too.



To program a Z position relative to the machine zero without tool offset, we have to program the following lines :

Z=[<Z position to reach> - VZOFZ – VZSHZ - VETFZ]

X=ABS[<X position to reach> - VZOFX – VZSHX- VETFX]



VZSHZ is the current shifting added to the active offset.

VETFZ is the current active tool offset in Z axis.
