Taper Cutting - Wire-Cut EDM

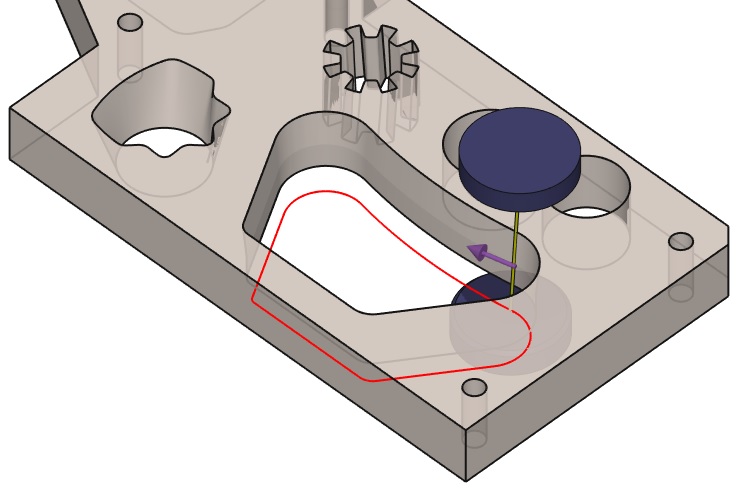

 | Operation of taper cutting. |
Key Points
If you want to program a constant taper, simply select a profile and define the angle of taper in the selection of the taper cutting cycle, If you want to program a complex taper, you need first to define the taper in design menu. |  |
Strategy Parameters
Dialog Area | Parameters | |
Toolpath | Mode | |
Offset type | ||
Part position | ||
Corners | ||
Movement Parameters
Dialog Area | Parameters | |
Approach / Return | ||
Lead in and Lead out | ||
Type of lead in radius | Type of lead out radius | |
Threading on retract distance | ||
Technology Parameters
Dialog Area | Parameters | |
Cutting Conditions | Feed rate | Number of angle register |
Offset number | ||
Setting number | Offset | |
Quality | ||
User Fields | Machine quality | Comment |
Control Device | Machining Set | |
Options Parameters
Dialog Area | Parameters | |
Options | Heigh of plane | Thickness |
Upper guide height | Cutting thickness | |
Lower guide height | Material height | |
Curves Computing | Curve Tolerance | Explode curve in |
Toolpath in 4 axis | ||
