Tool Library Customization

You can customize the header row to ease the tool selection.

Remove a header

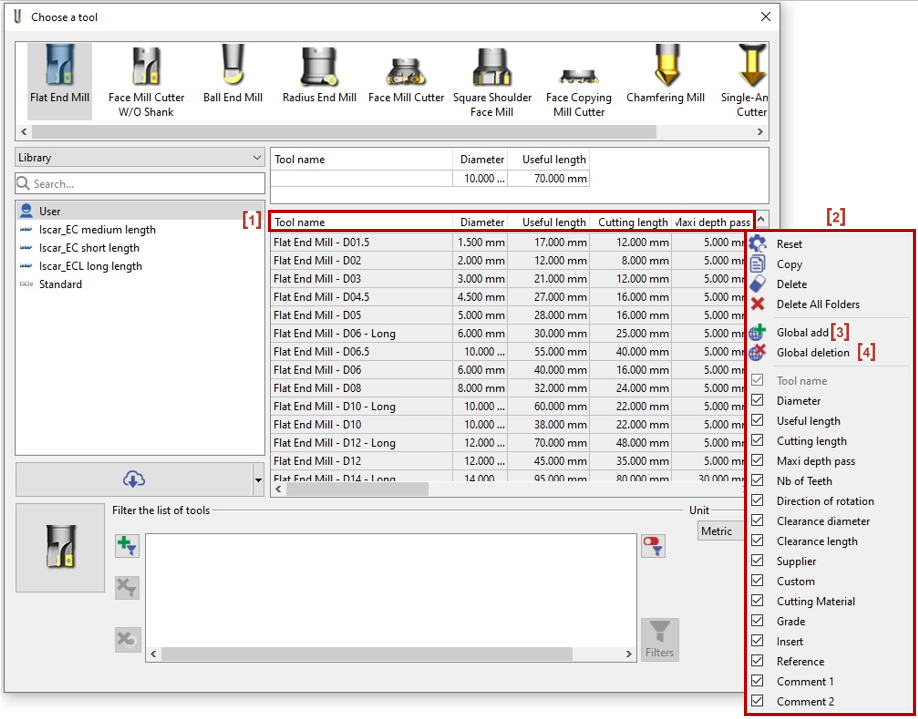

When doing a Right-click on the header row [1], a list of parameters [2] will appear.

Untick the check box next to the parameter and it will remove the column from the table.

Global Add

This option allows the user to add a parameter column in all the tools tables (Ball End Mill, Radius End Mill,…).

Do a Right-Click on the parameter column.

Left-click on Global add [3].

Global Deletion

This option allows the user to remove a parameter column from all the tools tables (Ball End Mill, Radius End Mill,…)

Do a Right-Click on the parameter column.

Left-click on Global Deletion [4].

Move Header

This option allows the user to move a parameter column in the header row according to its importance.

Click and Drag the Column to the right or left.

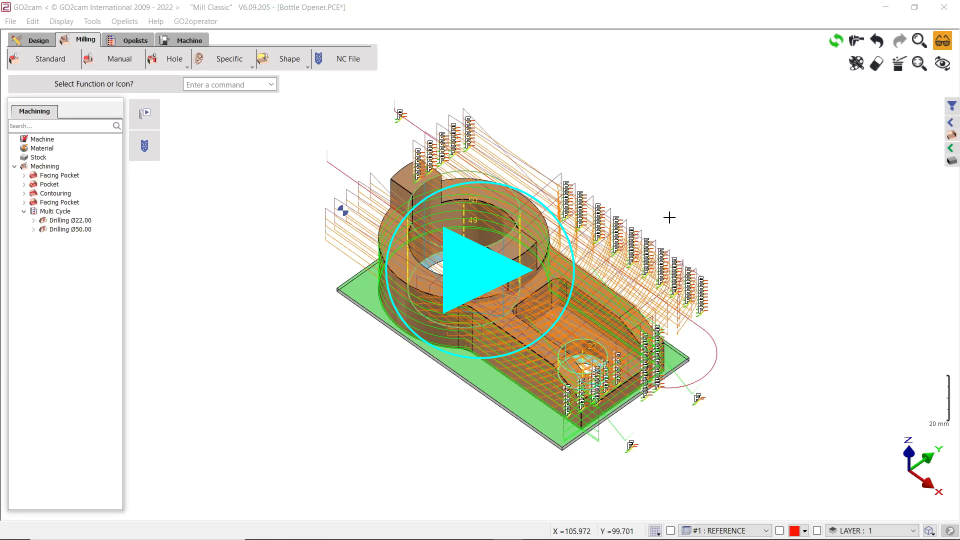

▶️	You can watch a video on Tool Library Customization:
