3X Deburring

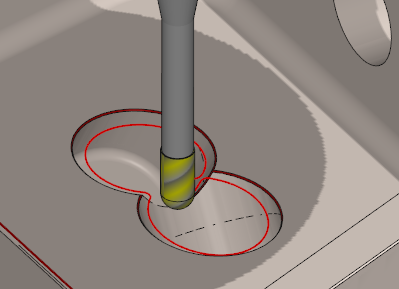

This operation removes burrs and excess material with a 3 axis toolpath.

Key Points

This cycle is automatic: just click the solid and the edges will be recognized.
A set of edges can also be selected; please refer to the selection guidance provided below.
The user’s own settings for edge detection can be defined, and edges can also be excluded from the toolpath.
These three types of tools can be used:
- Ball End Mill
- Taper Milling Cutter
- Lollipop Cutter

Edges always belong to two faces. One major information in the selection of edges is to select all the faces that the edges belong to!

On the left side, we select only the top face, which is not enough. The selection must be done with all lateral faces.

Download a sample including operations with 3X deburring and 5X deburring

Dialog Area	Parameters
Expert Option

Dialog Area	Parameters
Behaviour on the clamps and components	Gouge Check	Offset XY
Behaviour on the clamps and components	Safety area	Offset Z
Curves Computing	Curve tolerance	Curve segmentation

▶️ Watch a video showing two examples of the 3X deburring cycle.
