All Cycles
|

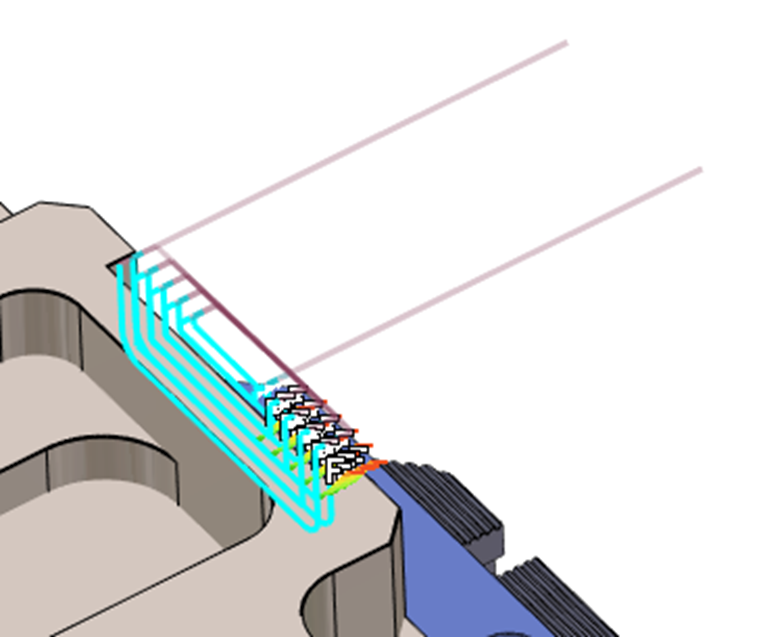

The "Gouge Check" setting, when enabled, restricts gouge verification to the first and last motions. All intermediate motions as outlined on the Movement page will be performed without gouge checking.
|
|
GO2cam manages collisions with symbols (devices such as clamps, vices, etc.) based on their actual shape. The options are:
Gouge Check
|

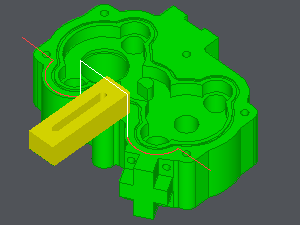

Yes: the toolpath is modified if there is a collision with the included symbol (as shown). |
|
None: no management. |
|
Warning: the toolpath is not modified, but there is a warning. |
|
Stop: the toolpath is stopped if there is a collision with the included symbol, the toolpath is stored in the operation list until a user action is made. |
Offset
|
Offset XY: adds extra 'Offset XY' area around the included symbol. Offset Z: adds extra 'Offset Z' area on top of the included symbol. |
|
